29-1 BLK
ActiveGrayhill Inc.
CONN BIND POST KNURLED BLACK
Deep-Dive with AI
Search across all available documentation for this part.
29-1 BLK
ActiveGrayhill Inc.
CONN BIND POST KNURLED BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 29-1 BLK |
|---|---|
| Color | Black |
| Current Rating (Amps) | 15 A |
| Head Size [diameter] | 12.7 mm |
| Head Size [diameter] | 0.5 " OD |
| Material - Body | Brass |
| Material - Insulation | Thermoplastic |
| Nut Material | Brass |
| Nut Plating | Nickel |
| Panel Thickness | 4.75 mm |
| Panel Thickness | 0.187 in |
| Plating - Body | Nickel |
| Termination | Turret, Threaded |
| Termination Thread | 10-32 |
| Type | Standard |
| Voltage Rating | 120 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.29 | |
| 10 | $ 10.01 | |||
| 100 | $ 8.72 | |||
| 1000 | $ 6.82 | |||
Description
General part information
29-1 Series

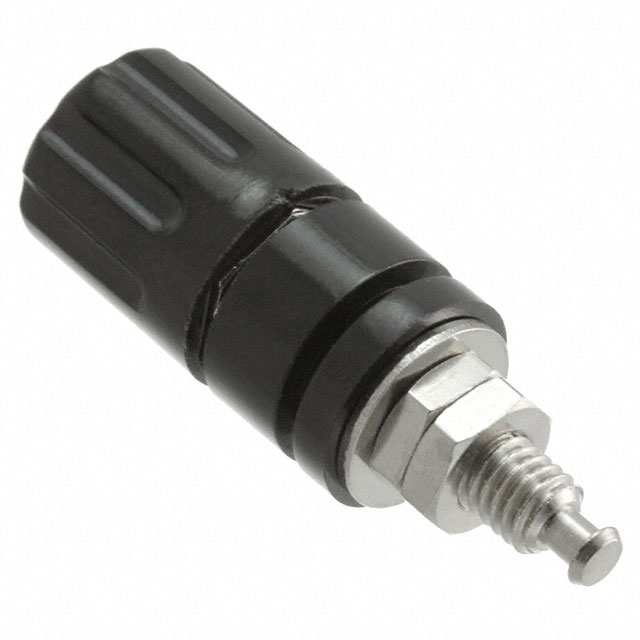

Binding Post Connector Standard Knurled Black Nickel
Documents
Technical documentation and resources
No documents available
