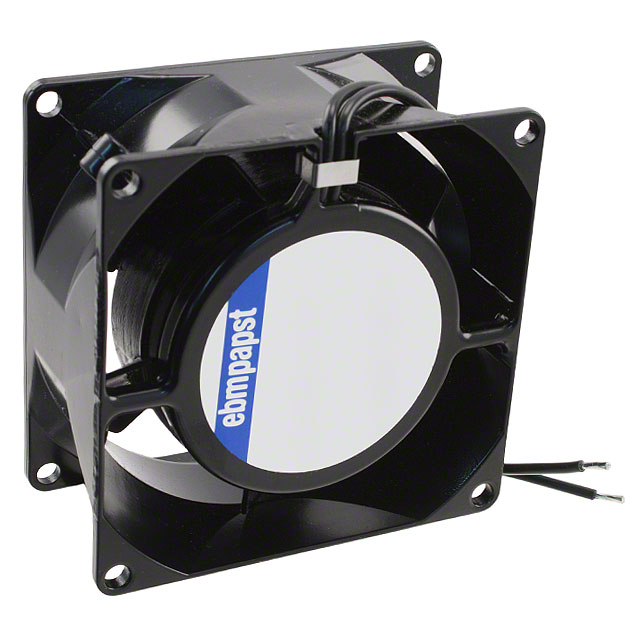

8550N
Activeebm-papst Inc.
FAN AXIAL 80X38MM 230VAC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
8550N
Activeebm-papst Inc.
FAN AXIAL 80X38MM 230VAC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8550N |
|---|---|
| Air Flow | 0.823 m³/min |
| Air Flow | 29.4 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Sintec |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 52500 Hrs |
| Material - Blade | Metal |
| Material - Frame | Metal |
| Noise | 30 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 12 W |
| RPM | 2700 RPM |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Termination | 2 Wire Leads |
| Voltage - Rated | 230 VAC |
| Weight | 499 g |
| Weight | 1.1 lbs |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 55.49 | |
| 10 | $ 50.20 | |||
| 25 | $ 46.90 | |||
| 50 | $ 46.24 | |||
| 100 | $ 42.60 | |||
Description
General part information
8550 Series
Fan Tubeaxial 230VAC Square - 80mm L x 80mm H Sintec 29.4 CFM (0.823m³/min) 2 Wire Leads
