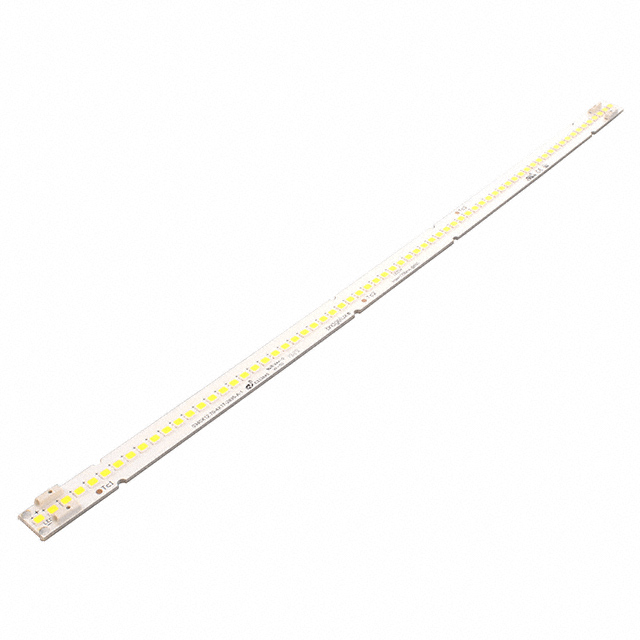

BXEB-L0340U-40E0750-C-C3

Active

BRIDGELUX

LED MOD EB SER WH LNR STRP 4000K

Search across all available documentation for this part.

Active

BRIDGELUX

LED MOD EB SER WH LNR STRP 4000K

Technical Specifications

Parameters and characteristics for this part

Specification	BXEB-L0340U-40E0750-C-C3

CCT (K)	4000 K
Color	Neutral, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Max [Max]	1.7 A
Features	With Connector
Height [z]	4.3 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	200 lm/W
Luminous Flux @ Current/Temperature	1530 lm
Size / Dimension [x]	340 mm
Size / Dimension [y]	0.5 in
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	10.9 V

Part	Lens Type	Type	Lumens/Watt @ Current - Test	CCT (K)	Viewing Angle	Color	Current - Max [Max]	CRI (Color Rendering Index)	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Configuration	Features
BRIDGELUX BXEB-L0340U-40E0750-C-C3	Flat	LED Module	200 lm/W	4000 K	120 °	Neutral White	1.7 A	80	0.5 in	340 mm	4.3 mm	1530 lm	10.9 V	Linear Light Strip	With Connector
BRIDGELUX BXEB-L0340U-35E0750-C-C3	Flat	LED Module	186 lm/W	3500 K	120 °	Warm White	1.7 A	80	0.5 in	340 mm	4.3 mm	1425 lm	10.9 V	Linear Light Strip	With Connector
BRIDGELUX BXEB-L0340U-30E0750-C-C3	Flat	LED Module	186 lm/W	3000 K	120 °	Warm White	1.7 A	80	0.5 in	340 mm	4.3 mm	1425 lm	10.9 V	Linear Light Strip	With Connector
BRIDGELUX BXEB-L0340U-50E0750-C-C3	Flat	LED Module	200 lm/W		120 °	Cool White	1.7 A	80	0.5 in	340 mm	4.3 mm	1530 lm	10.9 V	Linear Light Strip	With Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module EB Series™ Slim Gen 3 White, Neutral Linear Light Strip
