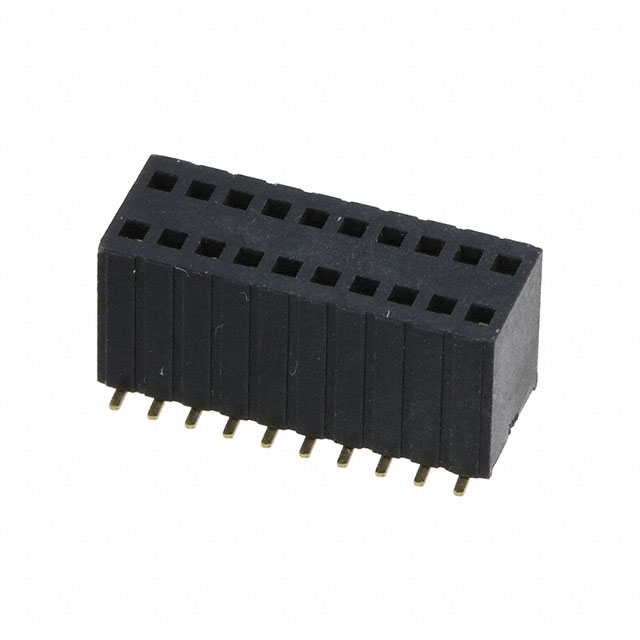

M52-5151045
ActiveHarwin Inc.
BOARD-TO-BOARD CONNECTOR, VERTICAL, ARCHER M52 SERIES, SURFACE MOUNT, RECEPTACLE, 20, 1.27 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M52-5151045
ActiveHarwin Inc.
BOARD-TO-BOARD CONNECTOR, VERTICAL, ARCHER M52 SERIES, SURFACE MOUNT, RECEPTACLE, 20, 1.27 MM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M52-5151045 |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 5.69 mm |
| Insulation Height | 0.224 in |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 8.5 mm, 9.77 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M52-515 Series
20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
