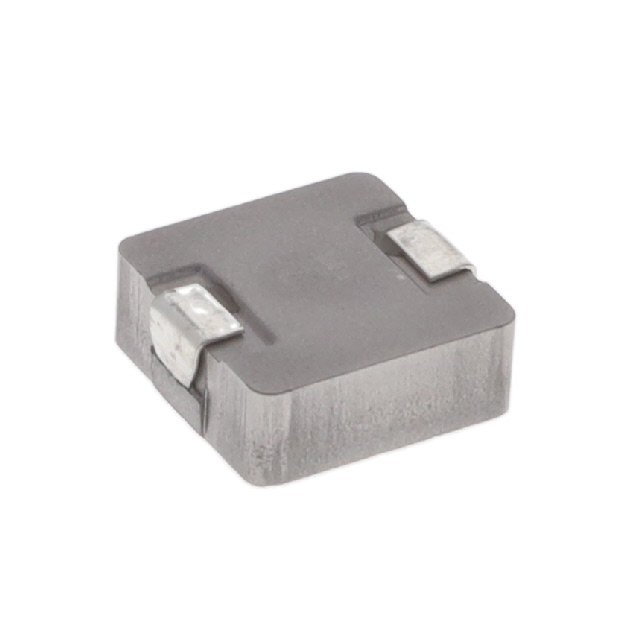

CMLB135T-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 26A 2.2 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMLB135T-1R0MS
ActiveDelta Electronics/Cyntec
FIXED IND 1UH 26A 2.2 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMLB135T-1R0MS |
|---|---|
| Current - Saturation (Isat) | 32.5 A |
| Current Rating (Amps) | 26 A |
| DC Resistance (DCR) [Max] | 2.2 mOhm |
| Height - Seated (Max) [Max] [z] | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm |
| Inductance | 1 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.16 | |
| 10 | $ 1.84 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.23 | |||
| Digi-Reel® | 1 | $ 2.16 | ||
| 10 | $ 1.84 | |||
| 25 | $ 1.69 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.23 | |||
| Tape & Reel (TR) | 500 | $ 0.79 | ||
Description
General part information
CMLB135T Series
1 µH Shielded Inductor 26 A 2.2mOhm Max Nonstandard
