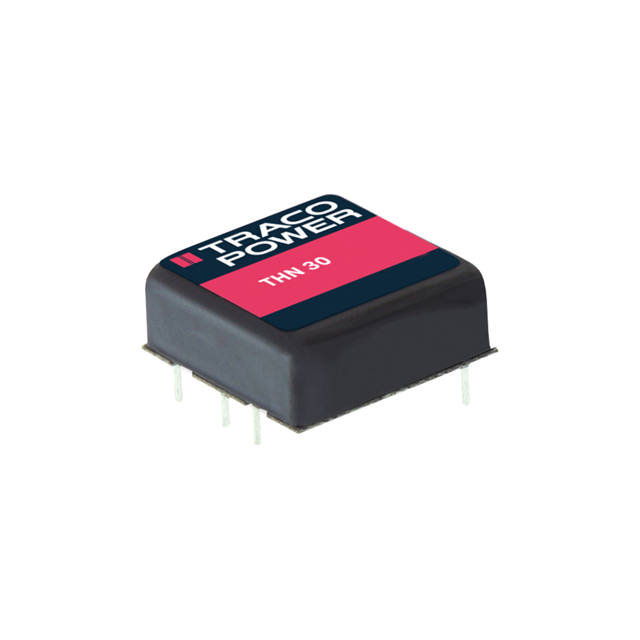

THN 30-4813

Active

Traco Power

DC DC CONVERTER 15V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

THN 30-4813

Active

Traco Power

DC DC CONVERTER 15V 30W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THN 30-4813

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Efficiency	91 %
Features	Remote On/Off, OVP, SCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.39 in
Size / Dimension [z]	9.9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	15 V

THN 30 Series

Part	Features	Voltage - Input (Max) [Max]	Package / Case	Applications	Voltage - Output 1	Voltage - Isolation	Number of Outputs	Mounting Type	Efficiency	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Approval Agency	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)
Traco Power THN 30-4811	OTP OVP Remote On/Off SCP	75 V	6-DIP Module	ITE (Commercial)	5 V	1.5 kV	1	Through Hole	89 %	36 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C	6 A
Traco Power THN 30-1215	OTP OVP Remote On/Off SCP	18 V	6-DIP Module	ITE (Commercial)	24 V	1.5 kV	1	Through Hole	89 %	9 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C	1.25 A
Traco Power THN 30-4813	OTP OVP Remote On/Off SCP	75 V	6-DIP Module	ITE (Commercial)	15 V	1.5 kV	1	Through Hole	91 %	36 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C	2 A
Traco Power THN 30-2412WI	OTP OVP Remote On/Off SCP UVLO	36 V	6-DIP Module	ITE (Commercial)	12 V	1.5 kV	1	Through Hole	89 %	9 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C	2.5 A	CB cURus
Traco Power THN 30-1210	OTP OVP Remote On/Off SCP	18 V	6-DIP Module	ITE (Commercial)	3.3 V	1.5 kV	1	Through Hole	86 %	9 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	23 W	Isolated Module	-40 °C	80 ¯C			7 A
Traco Power THN 30-4823WI	OTP OVP Remote On/Off SCP UVLO	75 V	6-DIP Module	ITE (Commercial)	15 V	1.5 kV	2	Through Hole	92 %	18 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C		CB cURus	1 A	-15 V	1 A
Traco Power THN 30-2425WI	OTP OVP Remote On/Off SCP UVLO	36 V	6-DIP Module	ITE (Commercial)	24 V	1.5 kV	2	Through Hole	91 %	9 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C		CB cURus	625 mA	-24 V	625 mA
Traco Power THN 30-4822WI	OTP OVP Remote On/Off SCP UVLO	75 V	6-DIP Module	ITE (Commercial)	12 V	1.5 kV	2	Through Hole	91 %	18 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C		CB cURus	1.25 A	-12 V
Traco Power THN 30-4822	OTP OVP Remote On/Off SCP	75 V	6-DIP Module	ITE (Commercial)	12 V	1.5 kV	2	Through Hole	91 %	36 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C			1.25 A	-12 V
Traco Power THN 30-4815	OTP OVP Remote On/Off SCP	75 V	6-DIP Module	ITE (Commercial)	24 V	1.5 kV	1	Through Hole	91 %	36 V	25.4 mm	1 in	0.39 in	25.4 mm	25.4 mm	9.9 mm	30 W	Isolated Module	-40 °C	80 ¯C	1.25 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 75.70
		10	$ 63.02
		25	$ 60.94
		50	$ 59.41
		100	$ 57.92
		250	$ 51.08

Description

General part information

THN 30 Series

Isolated Module DC DC Converter 1 Output 15V 2A 36V - 75V Input
