C3AEG-4018G
ActiveCW Industries
IDC CABLE - CSC40G/AE40G/CCE40G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3AEG-4018G
ActiveCW Industries
IDC CABLE - CSC40G/AE40G/CCE40G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3AEG-4018G |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Card Edge |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.85 | |
| 10 | $ 18.38 | |||
| 25 | $ 16.64 | |||
| 50 | $ 15.47 | |||
| 100 | $ 14.40 | |||
| 250 | $ 13.15 | |||
| 500 | $ 12.30 | |||
Description
General part information
C3AEG-4 Series

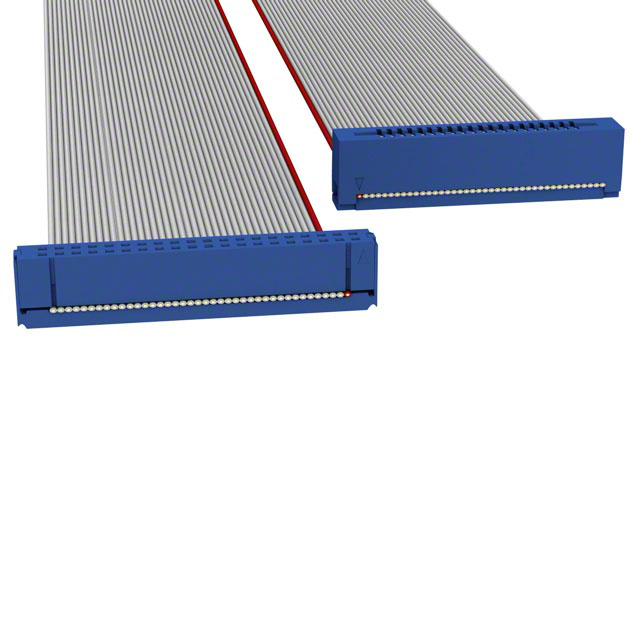

40 Position Cable Assembly Rectangular Socket to Card Edge 1.50' (457.20mm)
