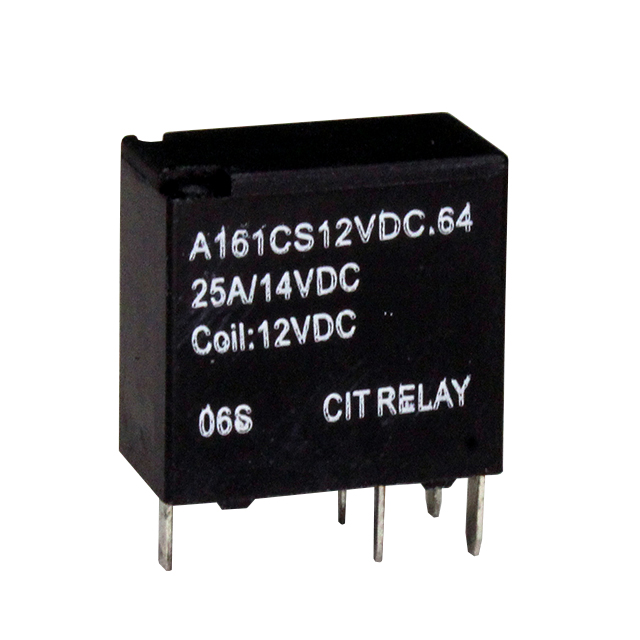

A161CS12VDC.64
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 25A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A161CS12VDC.64
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPDT 25A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A161CS12VDC.64 |
|---|---|
| Coil Current | 53.3 mA |
| Coil Power | 640 mW |
| Coil Resistance | 225 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 25 A |
| Features | Sealed - Fully |
| Mounting Type | Through Hole |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage [Max] | 20 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.28 | |
| 10 | $ 1.20 | |||
| 40 | $ 1.02 | |||
| 80 | $ 0.96 | |||
| 280 | $ 0.86 | |||
| 520 | $ 0.80 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.72 | |||
Description
General part information
A161CS Series
RELAY AUTOMOTIVE SPDT 25A 12V
