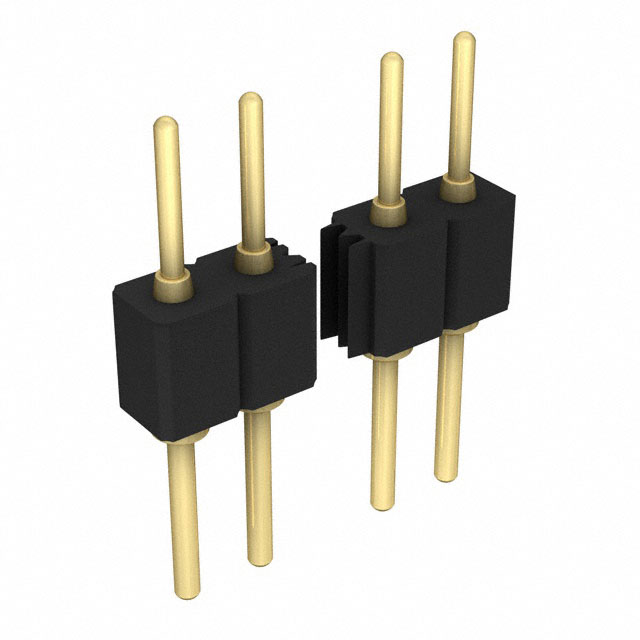

350-10-140-00-001101

Active

PRECI-DIP SA

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

350-10-140-00-001101

Active

PRECI-DIP SA

CONN HEADER VERT 40POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	350-10-140-00-001101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.156 in
Contact Length - Mating	3.96 mm
Contact Length - Post	0.164 in
Contact Length - Post	4.17 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.477 in
Overall Contact Length	12.12 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

350-10 Series

...

Part	Insulation Height	Insulation Height	Mounting Type	Termination	Number of Rows	Contact Finish - Mating	Insulation Color	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Shape	Contact Material	Connector Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Shrouding	Contact Type	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Insulation Material	Voltage Rating	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Contact Length - Post [x]
PRECI-DIP SA 350-10-133-00-019101	1.8 mm	0.071 "	Through Hole	Solder	1	Gold	Black	All	10 çin	0.25 çm	0.301 in	7.64 mm	33	Circular	Brass	Header	UL94 V-0	0.108 in	2.75 mm	Unshrouded	Male Pin	3 mm	0.118 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A
PRECI-DIP SA 350-10-127-00-006101			Through Hole	Solder	1	Gold	Black	All	10 çin	0.25 çm	0.394 in	10 mm	27	Circular	Brass	Header	UL94 V-0	0.114 in	2.9 mm	Unshrouded	Male Pin	3.6 mm	0.141 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A
PRECI-DIP SA 350-10-108-01-899191			Surface Mount	Solder	1	Gold	Black	All	10 çin	0.25 çm			8	Circular	Brass	Header	UL94 V-0			Unshrouded	Male Pin	3.6 mm	0.141 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A	Pick and Place
PRECI-DIP SA 350-10-135-01-666101	2.95 mm	0.116 in	Through Hole	Press-Fit Solder	1	Gold	Black	All	10 çin	0.25 çm	0.39 in	9.9 mm	35	Circular	Brass	Header	UL94 V-0		2.79 mm	Unshrouded	Male Pin	3.6 mm	0.141 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A		0.11 in
PRECI-DIP SA 350-10-157-01-609101			Through Hole	Solder	1	Gold	Black	All	10 çin	0.25 çm	0.477 in	12.12 mm	29	Circular	Brass	Header	UL94 V-0	0.164 in	4.17 mm	Unshrouded	Male Pin	3.96 mm	0.156 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.2 in	5.08 mm	-55 °C	125 °C	3 A
PRECI-DIP SA 350-10-145-01-609101			Through Hole	Solder	1	Gold	Black	All	10 çin	0.25 çm	0.477 in	12.12 mm	23	Circular	Brass	Header	UL94 V-0	0.164 in	4.17 mm	Unshrouded	Male Pin	3.96 mm	0.156 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.2 in	5.08 mm	-55 °C	125 °C	3 A
PRECI-DIP SA 350-10-103-00-206101	2.54 mm	0.1 in	Surface Mount Right Angle	Solder	1	Gold	Black	All	10 çin	0.25 çm				Circular	Brass	Header	UL94 V-0			Unshrouded	Male Pin	3.6 mm	0.141 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A
PRECI-DIP SA 350-10-140-00-001101			Through Hole	Solder	1	Gold	Black	All	10 çin	0.25 çm	0.477 in	12.12 mm	40	Circular	Brass	Header	UL94 V-0	0.164 in	4.17 mm	Unshrouded	Male Pin	3.96 mm	0.156 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A
PRECI-DIP SA 350-10-156-01-899101			Surface Mount	Solder	1	Gold	Black	All	10 çin	0.25 çm			56	Circular	Brass	Header	UL94 V-0			Unshrouded	Male Pin	3.6 mm	0.141 in	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A
PRECI-DIP SA 350-10-130-00-013101	2.95 mm	0.116 in	Through Hole	Solder	1	Gold	Black	All	10 çin	0.25 çm	0.416 in	10.57 mm	30	Circular	Brass	Header	UL94 V-0	0.121 in	3.08 mm	Unshrouded	Male Pin	3.39 mm	0.134 "	10 çin	0.25 çm	Gold	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	150 VDC	Push-Pull	0.1 in	2.54 mm	-55 °C	125 °C	3 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	125	$ 6.38
		240	$ 5.87

Description

General part information

350-10 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)
