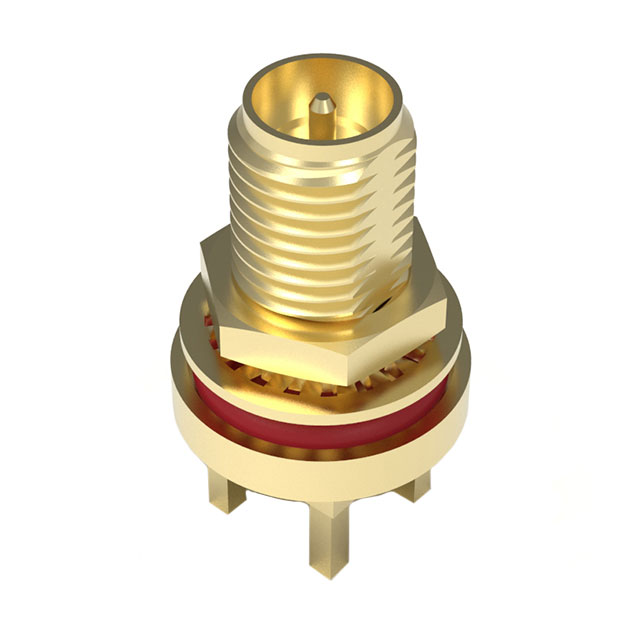

RFPC-SMA17-FN

Active

GCT (Gradconn)

RP SMA PCB MOUNT STRAIGHT BULKHE

Search across all available documentation for this part.

Active

GCT (Gradconn)

RP SMA PCB MOUNT STRAIGHT BULKHE

Technical Specifications

Parameters and characteristics for this part

Specification	RFPC-SMA17-FN

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	IP Rated Unmated
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Shield Termination	Solder

Part	Connector Style	Center Contact Material	Ingress Protection	Center Contact Plating	Body Finish	Mounting Type	Number of Ports	Shield Termination	Frequency - Max [Max]	Housing Color	Body Material	Features	Contact Termination	Mounting Feature	Includes	Connector Type	Dielectric Material
GCT (Gradconn) RFPC-SMA17-FN	RP-SMA	Brass	IP67/IP68 - Dust Tight Waterproof	Gold	Gold	Panel Mount Through Hole	1	Solder	6000 MHz	Gold	Brass	IP Rated Unmated	Solder	Bulkhead - Front Side Nut	1 Connector 1 Lockwasher 1 Nut	Jack Male Pin	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	140	$ 11.11

General part information

RP-SMA Connector Jack, Male Pin Panel Mount, Through Hole Solder
