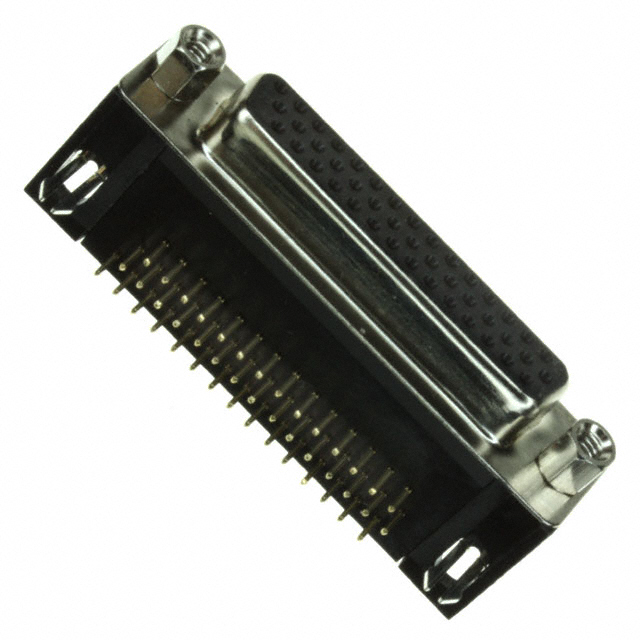

181-044-213R561

Active

MH Connectors

CONN D-SUB HD RCPT 44P R/A SLDR

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB HD RCPT 44P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	181-044-213R561

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Shielded, Board Lock
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	250 VDC

Part	Termination	Contact Finish Thickness	Contact Type	Connector Style	Connector Type	Number of Positions	Shell Material, Finish	Contact Material	Voltage Rating	Flange Feature	Material Flammability Rating	Current Rating (Amps)	Mounting Type	Features	Backset Spacing	Backset Spacing	Contact Finish	Dielectric Material	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Color
MH Connectors 181-044-213R561	Solder	Flash	Signal	D-Sub High Density	Receptacle Female Sockets	44	Nickel Plated Steel	Brass	250 VDC	Female Screwlock (4-40) Mating Side	UL94 V-0	3 A	Panel Mount Right Angle Through Hole	Board Lock Shielded	8.89 mm	0.35 in	Gold	Polyamide (PA9T) Nylon 9T	3	B DB	3	105 ░C	-55 °C	Black
MH Connectors 181-044-113R171	Solder	Flash	Signal	D-Sub High Density	Male Pins Plug	44	Nickel Plated Steel	Brass	250 VDC	Housing/Shell (4-40)	UL94 V-0	3 A	Panel Mount Right Angle Through Hole	Ground Strap Grounding Indents Shielded	8.89 mm	0.35 in	Gold	Polyamide (PA9T) Nylon 9T	3	B DB	3	105 ░C	-55 °C	Black
MH Connectors 181-044-213R531	Solder	Flash	Signal	D-Sub High Density	Receptacle Female Sockets	44	Nickel Plated Steel	Brass	250 VDC	Housing/Shell (4-40)	UL94 V-0	3 A	Panel Mount Right Angle Through Hole	Board Lock Shielded	8.89 mm	0.35 in	Gold	Polyamide (PA9T) Nylon 9T	3	B DB	3	105 ░C	-55 °C	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

44 Position D-Sub, High Density Receptacle, Female Sockets Connector
