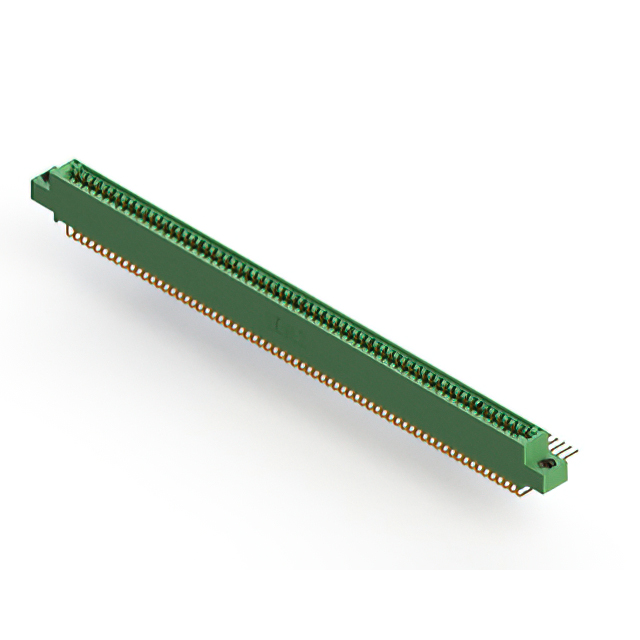

845-134-559-507
ActiveEDAC Inc.
CONN EDGE DUAL FML 134POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-134-559-507
ActiveEDAC Inc.
CONN EDGE DUAL FML 134POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-134-559-507 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 134 |
| Number of Positions/Bay/Row [custom] | 67 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
845-134 Series
...
| Part | Gender | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Mounting Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Material - Insulation | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Type | Contact Finish | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows | Color | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 2 | Green | |||
EDAC Inc. | Female | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Green | |||||
EDAC Inc. | Female | Solder Eyelet(s) | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Green | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | Wire Wrap | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | Green | |||
EDAC Inc. | Female | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Green | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | Wire Wrap | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 0.156 in | Top Mount Opening Unthreaded | 3.96 mm | 2 | Green | |||
EDAC Inc. | Female | Wire Wrap | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | Side Mount Opening Unthreaded | 2 | Green | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | M3 Threaded Insert Top Mount Opening | 2 | Green | |||||
EDAC Inc. | Female | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Board Edge Straddle Mount | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | 2 | Green | Card Extender | |||||
EDAC Inc. | Female | Solder | 125 °C | -40 °C | Non Specified - Dual Edge | Through Hole Right Angle | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Diallyl Phthalate (DAP) | Dual | 67 | 134 | Cantilever | Gold | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Copper Alloy | M3 Threaded Insert Top Mount Opening | 2 | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 141.04 | |
Description
General part information
845-134 Series
134 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
