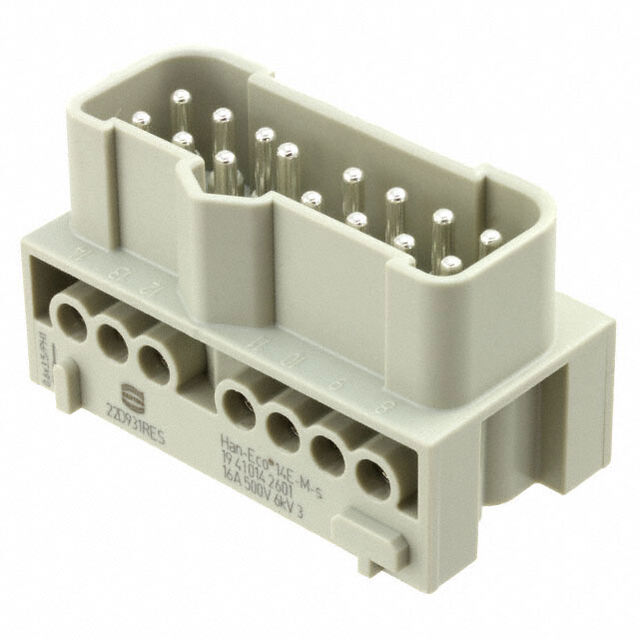

19410142601

Active

HARTING Technology Group

RECTANGULAR CONNECTOR,

Search across all available documentation for this part.

Active

HARTING Technology Group

RECTANGULAR CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	19410142601

Color	Gray
Connector Type	Module
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	14+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Termination Style	Screw
Voltage Rating	500 V

Part	Voltage Rating	Color	Termination Style	Connector Type	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Gender	Size	Current Rating (Amps)	Number of Positions
HARTING Technology Group 19410142601	500 V	Gray	Screw	Module	Polycarbonate (PC)	125 °C	-40 °C	UL94 V-0	Male	10B	16 A	14+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Module Gray 14+Ground Position Screw
