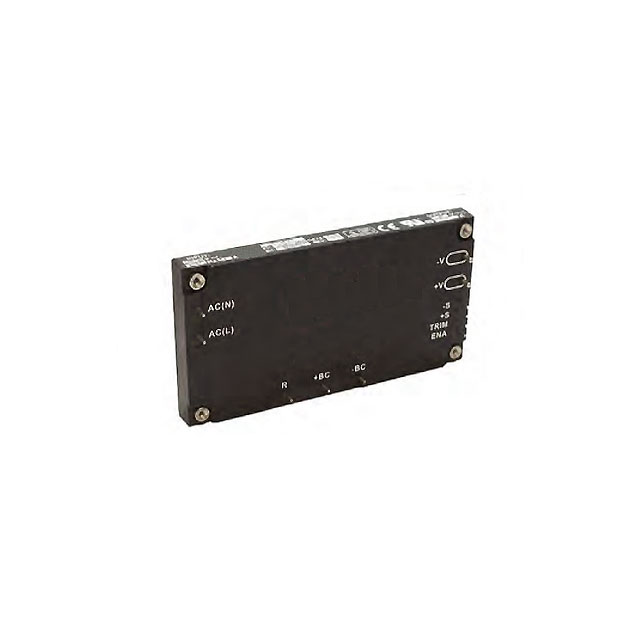

SMV-28-500

Active

Astrodyne TDI

AC/DC CONVERTER 28V 500W

Search across all available documentation for this part.

Active

Astrodyne TDI

AC/DC CONVERTER 28V 500W

Technical Specifications

Parameters and characteristics for this part

Specification	SMV-28-500

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output (Max) [Max]	18 A
Efficiency	90.5 %
Features	Baseplate, Universal Input, Adjustable Output, Remote Sense
Line Regulation	56 mV
Load Regulation	56 mV
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Full Brick
Power (Watts)	500 W
Size / Dimension [x]	4.6 "
Size / Dimension [x]	116.8 mm
Size / Dimension [y]	2.4 "
Size / Dimension [y]	61 mm
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.7 mm
Standard Number	60950-1
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Output 1	28 V
Weight	209 g
Weight	0.46 lb

Part	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Line Regulation	Type	Features	Weight	Weight	Number of Outputs	Applications	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Load Regulation	Approval Agency	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Efficiency	Current - Output (Max) [Max]	Package / Case
Astrodyne TDI SMV-28-500	60950-1	85 VAC	265 VAC	56 mV	Enclosed	Adjustable Output Baseplate Remote Sense Universal Input	209 g	0.46 lb	1	ITE (Commercial)	500 W	100 °C	-40 °C	56 mV	CE cURus TUV	28 V	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	Through Hole	90.5 %	18 A	Full Brick

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 28V 18A 85 ~ 265 VAC Input
