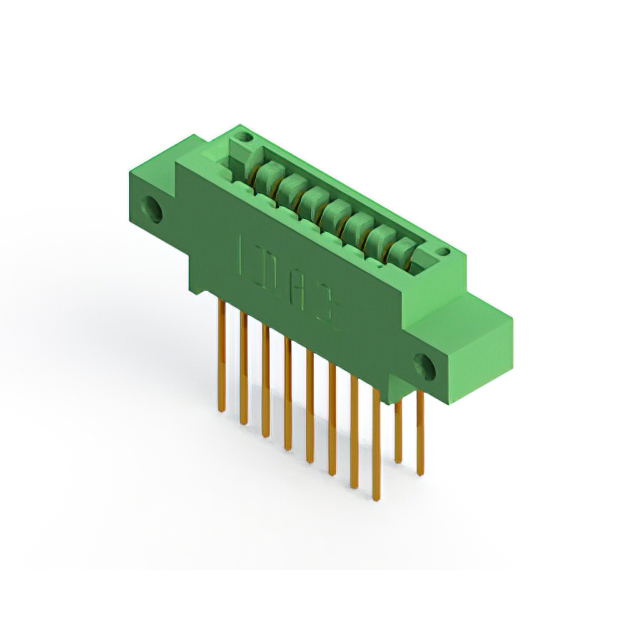

346-016-540-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-016-540-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 16POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-016-540-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Positions/Bay/Row [custom] | 8 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
346-016 Series
...
| Part | Read Out | Color | Gender | Contact Type | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Termination Rows | Card Type | Pitch [x] | Pitch [x] | Mounting Type | Material - Insulation | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Features | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Board Edge Straddle Mount | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | ||||||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Board Edge Straddle Mount | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | Card Extender | 3.25 mm | 0.128 " | |||
EDAC Inc. | Single | Green | Female | Cantilever | 1 | Non Specified - Single Edge | 0.125 in | 3.18 mm | Through Hole | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | 3.96 mm | 0.156 in | 16 | ||||||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Through Hole | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Through Hole Right Angle | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | 3.96 mm | 0.156 in | ||||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Through Hole | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | Card Guides | |||||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Board Edge Straddle Mount | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Top Opening Unthreaded | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | Card Extender | 3.25 mm | 0.128 " | |||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Through Hole | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | ||||||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Through Hole | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | 2.95 mm | 0.116 in | ||||
EDAC Inc. | Dual | Green | Female | Cantilever | 8 | 8 | 8 | 2 | Non Specified - Dual Edge | 0.125 in | 3.18 mm | Board Edge Straddle Mount | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | 10 Áin | 0.25 Ám | 2 | Gold | -40 °C | 105 ░C | Copper Alloy | 16 | Card Extender | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.76 | |
Description
General part information
346-016 Series
16 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
