SQHW40160RJ6

Active

TE Connectivity Passive Product

RES CHAS MNT 160 OHM 5% 40W

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES CHAS MNT 160 OHM 5% 40W

Technical Specifications

Parameters and characteristics for this part

Specification	SQHW40160RJ6

Coating, Housing Type	Ceramic
Composition	Wirewound
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	20 mm
Height - Seated (Max) [Max] [z]	0.787 "
Lead Style	0.25 in
Lead Style	6.35 mm
Lead Style	Quick Connects
Mounting Feature	Brackets (not included)
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Rectangular Case
Power (Watts)	40 W
Resistance	160 Ohms
Size / Dimension [x]	3.543 "
Size / Dimension [x]	90 mm
Size / Dimension [y]	19 mm
Size / Dimension [y]	0.748 in
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Coating, Housing Type	Package / Case	Composition	Lead Style	Lead Style	Lead Style	Resistance	Features	Mounting Feature	Power (Watts)	Tolerance	Temperature Coefficient
TE Connectivity Passive Product SQHW40160RJ6	20 mm	0.787 "	3.543 "	19 mm	90 mm	0.748 in	-55 °C	250 °C	Ceramic	Radial Rectangular Case	Wirewound	0.25 in	6.35 mm	Quick Connects	160 Ohms	Flame Proof Moisture Resistant Safety	Brackets (not included)	40 W	5 %	300 ppm/°C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

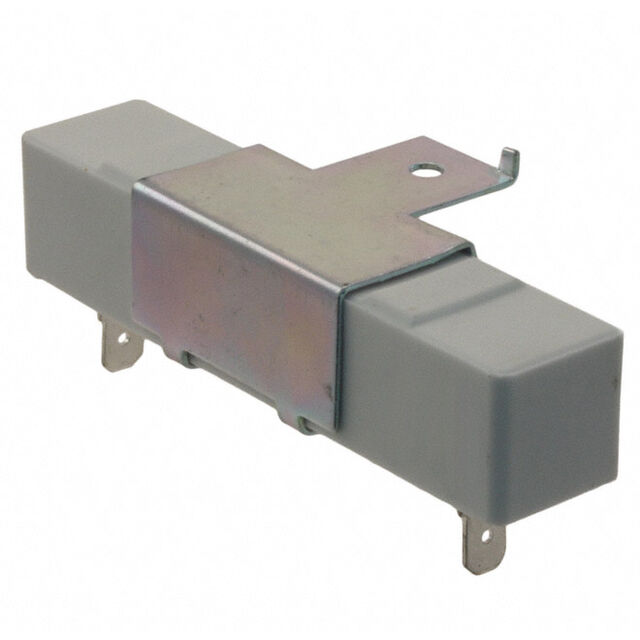

160 Ohms ±5% 40W Wirewound Chassis Mount Resistor
