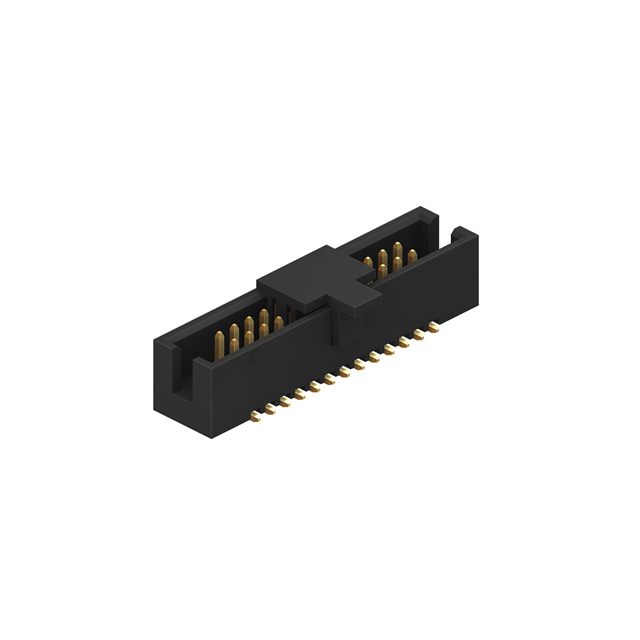

3221-26-0300-00-TR

Active

CnC Tech, LLC

CONN HEADER SMD 26POS 1.27MM

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN HEADER SMD 26POS 1.27MM

Technical Specifications

Parameters and characteristics for this part

Specification	3221-26-0300-00-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Pick and Place, Keying Slot
Insulation Color	Black
Insulation Height	5.4 mm
Insulation Height [z]	0.213 in
Insulation Material	Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	50 VAC

Part	Row Spacing - Mating	Row Spacing - Mating	Number of Rows	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Connector Type	Contact Material	Insulation Color	Insulation Height	Insulation Height [z]	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Style	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Termination	Contact Finish Thickness - Post	Shrouding	Contact Shape	Contact Finish - Mating	Mounting Type	Features	Material Flammability Rating	Fastening Type	Insulation Material	Insulation Height [z]	Contact Length - Post	Contact Length - Post
CnC Tech, LLC 3221-26-0300-00-TR	0.05 in	1.27 mm	2	Gold	0.05 in	1.27 mm	Header	Brass	Black	5.4 mm	0.213 in	All	26	Flash	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	50 VAC	Solder	Flash	Shrouded - 4 Wall	Square	Gold	Surface Mount	Keying Slot Pick and Place	UL94 V-0	Push-Pull	Nylon 9T Polyamide (PA9T)
CnC Tech, LLC 3221-26-0300-00	0.05 in	1.27 mm	2	Gold	0.05 in	1.27 mm	Header	Brass	Black	5.4 mm	0.213 in	All	26	Flash	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	50 VAC	Solder	Flash	Shrouded - 4 Wall	Square	Gold	Surface Mount	Keying Slot	UL94 V-0	Push-Pull	Nylon 9T Polyamide (PA9T)
CnC Tech, LLC 3221-26-0200-00	0.05 in	1.27 mm	2	Gold	0.05 in	1.27 mm	Header	Brass	Black		0.201 "	All	26	Flash	Board to Cable/Wire	Male Pin	-40 °C	105 ░C	50 VAC	Solder	Flash	Shrouded - 4 Wall	Square	Gold	Through Hole Right Angle	Keying Slot	UL94 V-0	Push-Pull	Nylon 9T Polyamide (PA9T)	5.1 mm	0.083 in	2.11 mm
