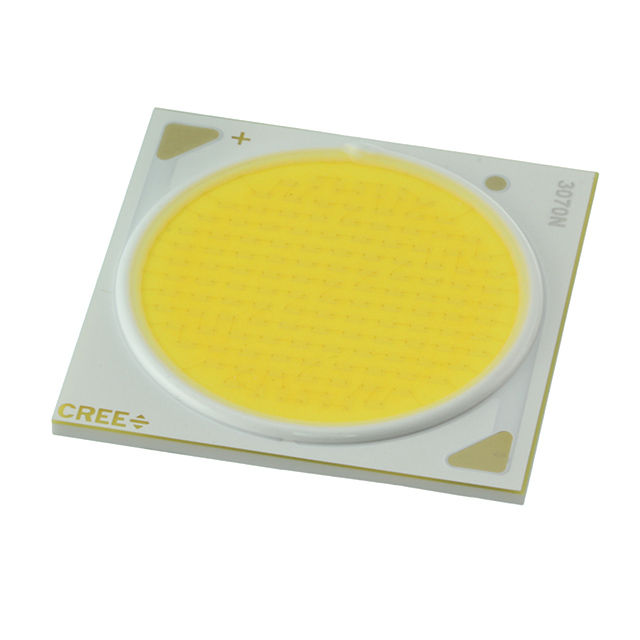

CXA3070-0000-000N00Z435H

Obsolete

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXA3070-0000-000N00Z435H

Obsolete

Cree LED

LED COB XLAMP WARM WHT SQU 3500K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA3070-0000-000N00Z435H

CCT (K)	3500 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	2.8 A
Current - Test	1.925 A
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	23 mm
Lumens/Watt @ Current - Test	109 lm/W
Luminous Flux @ Current/Temperature	8073 lm
Size / Dimension [x]	27.35 mm
Size / Dimension [y]	27.35 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	38.5 V

CXA3070 Series

...

Part	Lumens/Watt @ Current - Test	Light Emitting Surface (LES) [diameter]	Type	Lens Type	CRI (Color Rendering Index)	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	CCT (K)	Current - Test	Voltage - Forward (Vf) (Typ)	Height [z]	Luminous Flux @ Current/Temperature	Temperature - Test	Color	Configuration	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
Cree LED CXA3070-0000-000NTHAB65F	127 lm/W	23 mm	Chip On Board (COB)	Flat	80	2.8 A	27.35 mm	27.35 mm	115 °	6500 K	1.9 A	36.2 V	1.7 mm	8750 lm	85 °C	Cool White	Square
Cree LED CXA3070-0000-000N0HAB65F	118 lm/W	23 mm	Chip On Board (COB)	Flat	80	2.8 A	27.35 mm	27.35 mm	115 °	6500 K	1.925 A	38.5 V	1.7 mm	8750 lm	85 °C	Cool White	Square
Cree LED CXA3070-0000-000N00Z435H	109 lm/W	23 mm	Chip On Board (COB)	Flat	80	2.8 A	27.35 mm	27.35 mm	115 °	3500 K	1.925 A	38.5 V	1.7 mm	8073 lm	85 °C	Warm White	Square
Cree LED CXA3070-0000-000N0UZ250H	103 lm/W	23 mm	Chip On Board (COB)	Flat	90	2.8 A	27.35 mm	27.35 mm	115 °	5000 K	1.925 A	38.5 V	1.7 mm	7668 lm	85 °C	Cool White	Square
Cree LED CXA3070-0000-000NTUY440F	104 lm/W	23 mm	Chip On Board (COB)	Flat	90	2.8 A	27.35 mm	27.35 mm	115 °	4000 K	1.9 A	36.2 V	1.7 mm	7150 lm	85 °C	Neutral White	Square	7390 lm	6910 lm
Cree LED CXA3070-0000-000NTYX430F	90 lm/W	23 mm	Chip On Board (COB)	Flat	93	2.8 A	27.35 mm	27.35 mm	115 °	3000 K	1.9 A	36.2 V	1.7 mm	6220 lm	85 °C	Warm White	Square	6430 lm	6010 lm
Cree LED CXA3070-0000-000N00AD0E2	125 lm/W	23 mm	Chip On Board (COB)	Flat	70	2.8 A	27.35 mm	27.35 mm	115 °	5700 K	1.925 A	38.5 V	1.7 mm	9250 lm	85 °C	Cool White	Square
Cree LED CXA3070-0000-000N00Z427G	120 lm/W	23 mm	Chip On Board (COB)	Flat	80	2.8 A	27.35 mm	27.35 mm	115 °	2700 K	1.9 A	36 V	1.7 mm	8223 lm	85 °C	Warm White	Square	8500 lm	7945 lm
Cree LED CXA3070-0000-000NTUZ20E2		23 mm	Chip On Board (COB)	Flat	90	2.8 A	27.35 mm	27.35 mm	115 °		1.5 A	38.5 V	1.7 mm		85 °C	White	Square
Cree LED CXA3070-0000-000NT0Z235F	111 lm/W	23 mm	Chip On Board (COB)	Flat	80	2.8 A	27.35 mm	27.35 mm	115 °		1.9 A	36.2 V	1.7 mm	7668 lm	85 °C	Warm White	Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CXA3070 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA3070 White, Warm Square
