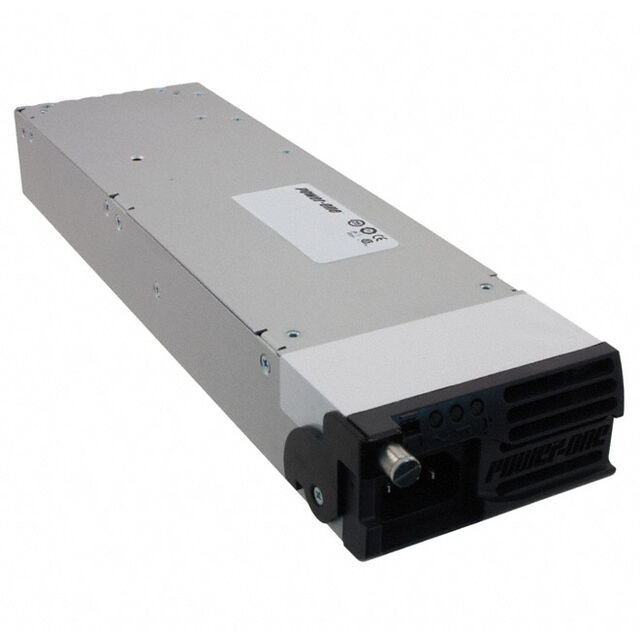

FNP1000-48G

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 48V 1000W

Search across all available documentation for this part.

Obsolete

EOS Power India Private Ltd

AC/DC CONVERTER 48V 1000W

Technical Specifications

Parameters and characteristics for this part

Specification	FNP1000-48G

Applications	ITE (Commercial)
Current - Output 1	21 A
Efficiency	89 %
Features	Adjustable Output, Remote Sense, PFC, Standby Output, Universal Input, I2C Interface
Minimum Load Required	False
Mounting Type	Rack Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1 kW
Size / Dimension [x]	298.2 mm
Size / Dimension [x]	11.74 "
Size / Dimension [y]	1.6 "
Size / Dimension [y]	40.6 mm
Size / Dimension [z]	3.3 "
Size / Dimension [z]	83.8 mm
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Current - Output 1	Voltage - Isolation	Mounting Type	Applications	Minimum Load Required	Efficiency	Power (Watts)	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs
EOS Power India Private Ltd FNP1000-48G	48 V	90 VAC	264 VAC	70 °C	0 °C	Adjustable Output I2C Interface PFC Remote Sense Standby Output Universal Input	21 A	4000 V	Rack Mount	ITE (Commercial)		89 %	1 kW	Front End	3.3 "	1.6 "	298.2 mm	83.8 mm	11.74 "	40.6 mm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Front End AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
