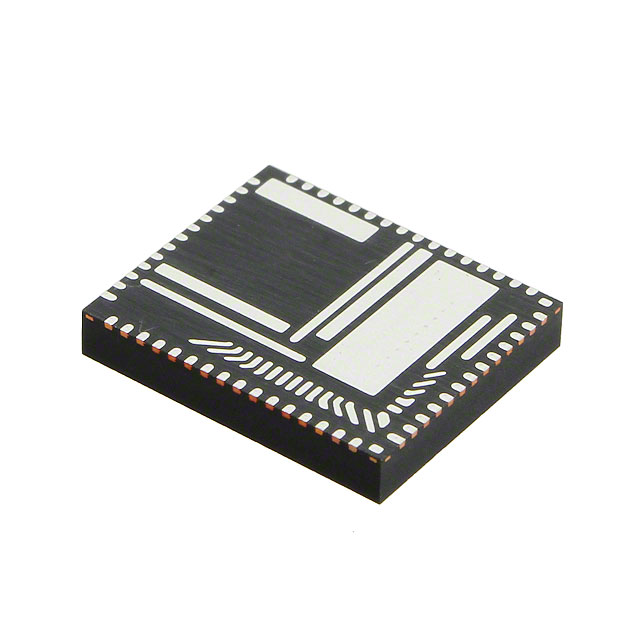

EN5365QI

Obsolete

Altera

DC DC CONVERTER 0.75-3.3V

Search across all available documentation for this part.

Obsolete

Altera

DC DC CONVERTER 0.75-3.3V

Technical Specifications

Parameters and characteristics for this part

Specification	EN5365QI

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	6 A
Efficiency	93 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	58-PowerQFN Module
Size / Dimension [x]	0.47 in
Size / Dimension [x]	12 mm
Size / Dimension [y]	0.39 "
Size / Dimension [y]	10 mm
Size / Dimension [z]	1.9 mm
Size / Dimension [z]	0.07 "
Supplier Device Package	58-QFN (12x10)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	2.375 V
Voltage - Output 1 [Max]	3.3 V
Voltage - Output 1 [Min]	0.75 V

Part	Voltage - Input (Max) [Max]	Features	Mounting Type	Control Features	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Applications	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]
Altera EN5365QI	5.5 V	OCP OTP OVP Remote On/Off SCP UVLO	Surface Mount	Active High Enable	93 %	0.75 V	3.3 V	ITE (Commercial)	58-PowerQFN Module	0.47 in	0.39 "	1.9 mm	0.07 "	10 mm	12 mm	Non-Isolated PoL Module	6 A	1	2.375 V	58-QFN (12x10)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.3V 6A 2.375V - 5.5V Input
