LQH32PZ6R8NNCL
ActiveMurata Power Solutions Inc.
FIXED IND
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LQH32PZ6R8NNCL
ActiveMurata Power Solutions Inc.
FIXED IND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LQH32PZ6R8NNCL |
|---|---|
| Current - Saturation (Isat) | 1.3 A |
| Current Rating (Amps) | 1.1 A |
| DC Resistance (DCR) [Max] | 264 mOhm |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) [Max] | 0.067 in |
| Height - Seated (Max) [Max] | 1.7 mm |
| Inductance | 6.8 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1210 |
| Package / Case | 3225 Metric |
| Shielding | Shielded |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Supplier Device Package | 1210 |
| Tolerance | 30 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.44 | |||
| 25 | $ 0.40 | |||
| 50 | $ 0.36 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.31 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.23 | ||
| 4000 | $ 0.23 | |||
| 6000 | $ 0.22 | |||
| 10000 | $ 0.21 | |||
| 50000 | $ 0.19 | |||
Description
General part information
LQH32PZ Series

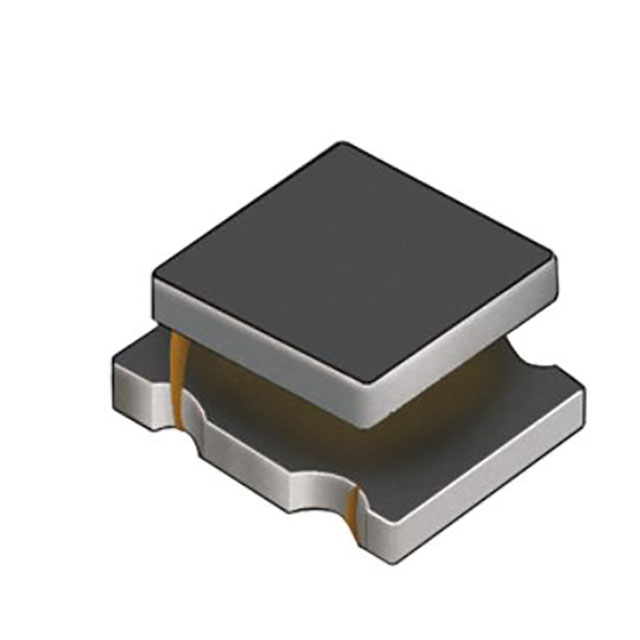

6.8 µH Shielded Wirewound Inductor 1.1 A 264mOhm Max 1210 (3225 Metric)
