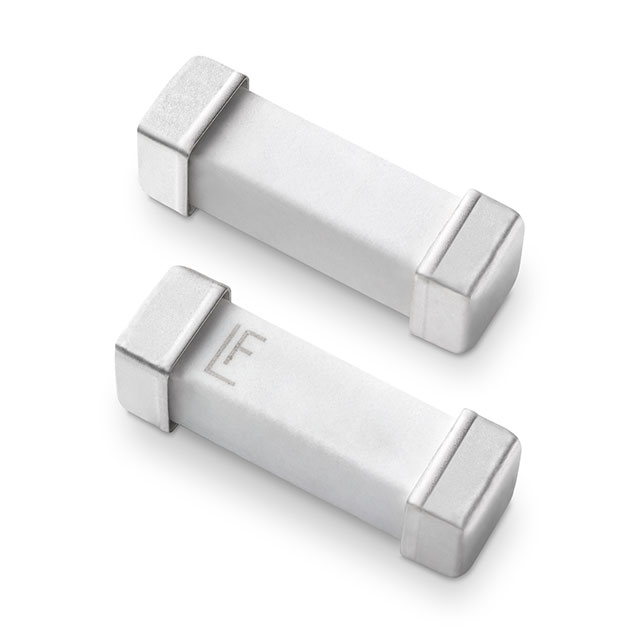

04431.25ERE - 04431.25ERE

04431.25ERE

Active
Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, SLOW BLOW, 1.25A, 250VAC, 250VDC, 200A (IR), SURFACE MOUNT, NANO,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetVDE 40046623+3
04431.25ERE - 04431.25ERE

04431.25ERE

Active
Littelfuse/Commercial Vehicle Products

ELECTRIC FUSE, SLOW BLOW, 1.25A, 250VAC, 250VDC, 200A (IR), SURFACE MOUNT, NANO,

Deep-Dive with AI

DocumentsDatasheetVDE 40046623+3

Technical Specifications

Parameters and characteristics for this part

Specification04431.25ERE
Approval AgencyCQC, VDE, cURus
Breaking Capacity @ Rated Voltage200 A
Current Rating (Amps)1.25 A
DC Cold Resistance0.1 Ohms
Fuse TypeBoard Mount
Melting I˛t3.97
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-45 °C
Package / Case2-SMD, Square End Block
Response TimeSlow Blow
Size / Dimension [x]0.397 "
Size / Dimension [x]10.08 mm
Size / Dimension [y]0.12 "
Size / Dimension [y]3.05 mm
Size / Dimension [z]3.05 mm
Size / Dimension [z]0.12 in
Voltage Rating - AC250 V
Voltage Rating - DC250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.84
5$ 1.76
10$ 1.67
50$ 1.35
100$ 1.14
250$ 1.11
500$ 0.94
1000$ 0.83
Digi-Reel® 1$ 1.84
5$ 1.76
10$ 1.67
50$ 1.35
100$ 1.14
250$ 1.11
500$ 0.94
1000$ 0.83
Tape & Reel (TR) 2500$ 0.72
NewarkEach (Supplied on Full Reel) 2000$ 0.89
4000$ 0.80
6000$ 0.77
10000$ 0.74

Description

General part information

04431.25ERE Series

The 443E Series is a Nano2®, 250 V fuse. It is a surface mount Universal Modular Fuse (UMF) that complies with IEC 60127-4. It is RoHS-compliant and fully compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly.
