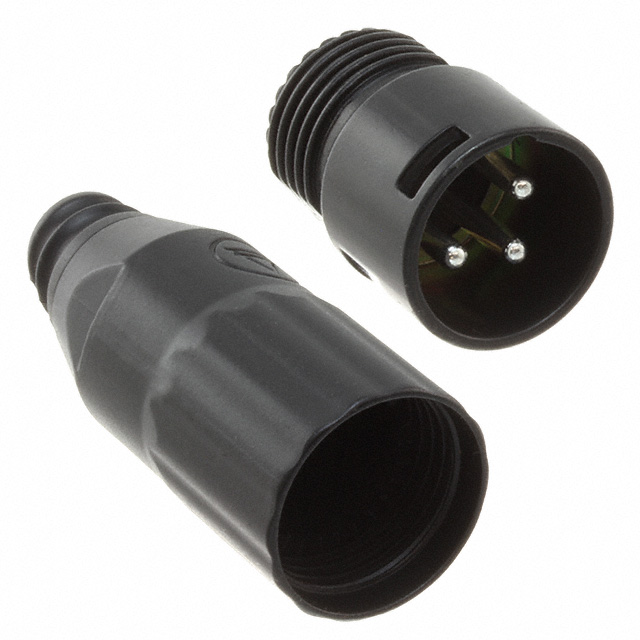

AAA3MBZ

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAA3MBZ

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AAA3MBZ

Applications	Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Chrome, Zinc
Cable Opening [diameter]	2.54 mm, 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded
Voltage Rating	125 VAC

AAA7MP Series

XLR Connectors 7P M SLD XLR PLS HND Ni FINISH, Ag PLT

Part	Shell Size - Insert	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Primary Material	Applications	Shell Material	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Insert Material	Shielding	Connector Type	Contact Finish - Mating	Features	Backshell Material, Plating	Contact Material	Color	Shell Finish	Orientation	Ingress Protection	Cable Opening [diameter]	Cable Opening [diameter]	Voltage Rating	Current Rating (Amps)	Number of Positions	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]
Switchcraft Inc. AAA3MBZH	XLR	Free Hanging (In-Line)	65 °C	-40 °C	Latch Lock	Metal	Audio Instrumentation	Zinc Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Thermoplastic	Shielded	Male Pins Receptacle	Silver	Backshell Cable Clamp Ground Strain Relief	Chrome Zinc	Copper Alloy	Black	Chrome	Keyed	IP66
Switchcraft Inc. AAA3MBZ	XLR	Free Hanging (In-Line)			Latch Lock	Metal	Audio Industrial Instrumentation Medical	Zinc Alloy					Thermoplastic	Shielded	Male Pins Receptacle	Silver	Backshell Cable Clamp Ground Strain Relief	Chrome Zinc	Copper Alloy	Black	Chrome	Keyed		2.54 mm 5.59 mm	0.1 in 0.22 in	125 VAC	15 A
Switchcraft Inc. AAA7MPZH	XLR	Free Hanging (In-Line)	65 °C	-40 °C	Latch Lock	Metal	Audio Instrumentation	Zinc Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Thermoplastic	Shielded	Male Pins Receptacle	Silver	Backshell Cable Clamp Ground Strain Relief	Nickel Zinc Alloy	Copper Alloy	Silver	Nickel	Keyed	IP66					7
Switchcraft Inc. AAA7FPZH	XLR	Free Hanging (In-Line)	65 °C	-40 °C	Latch Lock	Metal	Audio Instrumentation	Zinc Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Thermoplastic	Shielded	Female Sockets Plug	Silver	Backshell Cable Clamp Ground Strain Relief	Nickel Zinc Alloy	Copper Alloy	Silver	Nickel	Keyed	IP66					7
Switchcraft Inc. AAA6MBAUZ	XLR	Free Hanging (In-Line)			Latch Lock	Metal	Audio Industrial Instrumentation Medical	Zinc Alloy					Thermoplastic	Shielded	Male Pins Receptacle	Gold	Backshell Cable Clamp Ground Strain Relief	Chrome Zinc	Copper Alloy	Black	Chrome	Keyed		2.54 mm 5.59 mm	0.1 in 0.22 in	125 VAC	7.5 A	6
Switchcraft Inc. AAA7MPZPKG	XLR	Free Hanging (In-Line)			Latch Lock	Metal	Audio Industrial Instrumentation Medical	Zinc Alloy					Thermoplastic	Shielded	Male Pins Receptacle	Silver	Backshell Cable Clamp Ground Strain Relief	Nickel Zinc Alloy	Copper Alloy	Silver	Nickel	Keyed		2.54 mm 5.59 mm	0.1 in 0.22 in	125 VAC	5 A	7
Switchcraft Inc. AAA5FAUZH	XLR	Free Hanging (In-Line)	65 °C	-40 °C	Latch Lock	Metal	Audio Instrumentation	Zinc Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Thermoplastic	Shielded	Female Sockets Plug	Gold	Backshell Cable Clamp Ground Strain Relief	Nickel Zinc Alloy	Copper Alloy	Silver	Nickel	Keyed	IP66
Switchcraft Inc. AAA3MBAUZH	XLR	Free Hanging (In-Line)	65 °C	-40 °C	Latch Lock	Metal	Audio Instrumentation	Zinc Alloy	0.15 in	3.81 mm	7.24 mm	0.285 in	Thermoplastic	Shielded	Male Pins Receptacle	Gold	Backshell Cable Clamp Ground Strain Relief	Chrome Zinc	Copper Alloy	Black	Chrome	Keyed	IP66
Switchcraft Inc. AAA3MBLP	XLR	Free Hanging (In-Line)			Latch Lock	Metal	Audio Instrumentation	Zinc Alloy					Thermoplastic	Shielded	Male Pins Receptacle	Silver	Backshell Ground Strain Relief	Thermoplastic	Copper Alloy	Black	Black Painted	Keyed							0.205 in 5.21 mm	0.145 in 3.68 mm
Switchcraft Inc. AAA6MBZ	XLR	Free Hanging (In-Line)			Latch Lock	Metal	Audio Industrial Instrumentation Medical	Zinc Alloy					Thermoplastic	Shielded	Male Pins Receptacle	Silver	Backshell Cable Clamp Ground Strain Relief	Chrome Zinc	Copper Alloy	Black	Chrome	Keyed		2.54 mm 5.59 mm	0.1 in 0.22 in	125 VAC	7.5 A	6
