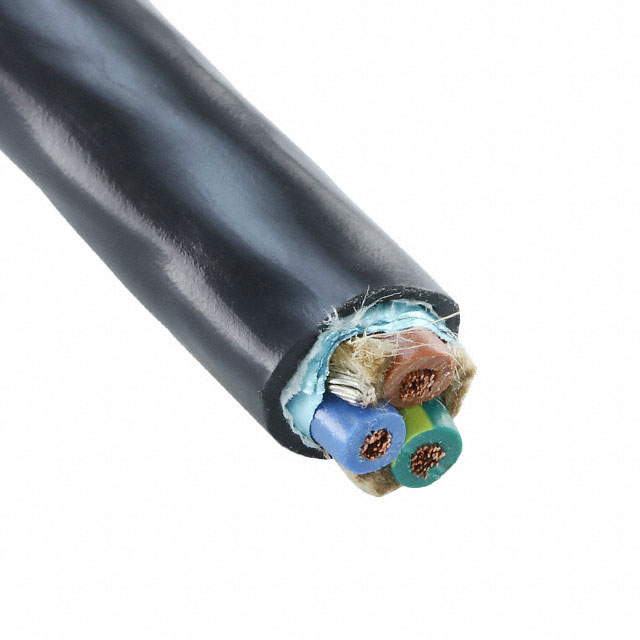

1941/3F BK003
ActiveALPHA WIRE
CABLE 3COND 18AWG BLK SHLD 250'
Deep-Dive with AI
Search across all available documentation for this part.
1941/3F BK003
ActiveALPHA WIRE
CABLE 3COND 18AWG BLK SHLD 250'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1941/3F BK003 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 41 strands |
| Conductor Strand [custom] | 34 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.314 in |
| Jacket (Insulation) Diameter [diameter] | 7.98 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 3000 ", 10 ft |
| Length | 76.2 m, 3.05 m, 15.24 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft, 50 ft |
| Number of Conductors | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 152.41 | |
| 1 | $ 865.28 | |||
| 1 | $ 34.03 | |||
| 1 | $ 285.13 | |||
| 2 | $ 143.91 | |||
| 3 | $ 265.21 | |||
| 3 | $ 31.60 | |||
| 5 | $ 133.85 | |||
| 5 | $ 249.88 | |||
| 5 | $ 29.93 | |||
| 10 | $ 237.61 | |||
| 10 | $ 126.11 | |||
| 10 | $ 28.26 | |||
| 10 | $ 793.67 | |||
| 25 | $ 26.29 | |||
| 25 | $ 119.92 | |||
| 25 | $ 785.82 | |||
| 25 | $ 220.75 | |||
| 50 | $ 111.41 | |||
| 50 | $ 24.77 | |||
| 50 | $ 199.29 | |||
| 100 | $ 23.55 | |||
| 100 | $ 100.58 | |||
Description
General part information
1941/3F Series
3 Conductor Multi-Conductor Cable Black 18 AWG Foil 250.0' (76.2m)
