304080003
ObsoleteSeeed Technology Co., Ltd

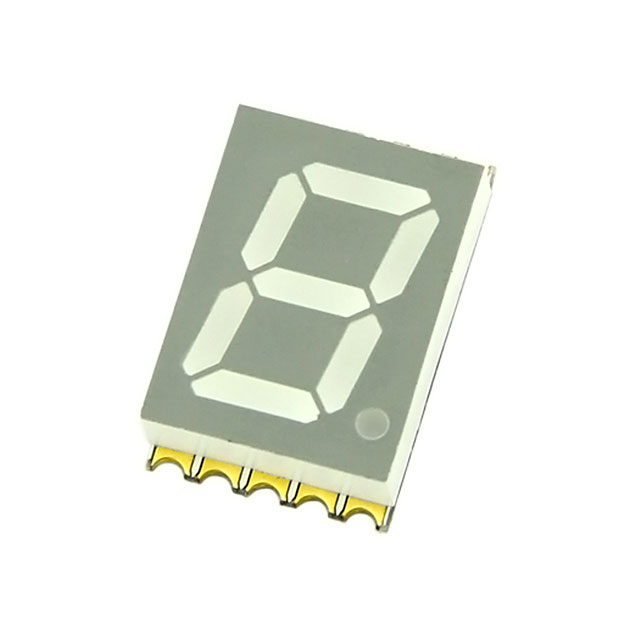

DISPLAY 7SEG 0.39" SGL RED 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
304080003
ObsoleteSeeed Technology Co., Ltd
DISPLAY 7SEG 0.39" SGL RED 10SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 304080003 |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 25 mA |
| Digit/Alpha Size | 0.39 in |
| Digit/Alpha Size | 10 mm |
| Display Type | 7-Segment |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 0.591 in |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [y] | 9.8 mm |
| Size / Dimension [y] | 0.386 in |
| Size / Dimension [z] | 0.148 in |
| Size / Dimension [z] | 3.75 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
304080 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 25mA 0.591" H x 0.386" W x 0.148" D (15.00mm x 9.80mm x 3.75mm) 10-SMD, No Lead
