19412100301

Active

HARTING Technology Group

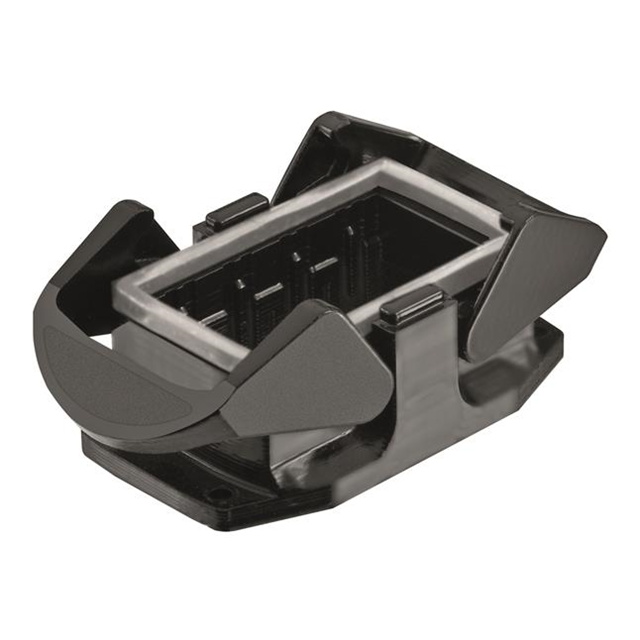

HAN-ECO MODULAR 10B BULKHEAD HOUSING - OUTDOOR

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO MODULAR 10B BULKHEAD HOUSING - OUTDOOR

Technical Specifications

Parameters and characteristics for this part

Specification	19412100301

Connector Type	Base - Panel Mount
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Style	Bottom Entry

Part	Ingress Protection	Housing Material	Housing Color	Style	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Size	Features	Thread Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
HARTING Technology Group 19412100722	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled	Black	Bottom Entry	Hood - Coupling	125 °C	-40 °C	Locking Clip (2) on Hood Top	10B	Cable to Cable	M32
HARTING Technology Group 19412100232	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled	Black	Side Entry	Base - Box Mount	125 °C	-40 °C	Locking Clip (2) on Base Bottom	10B		M32	3.898 "	68 mm	2.843 in	72.2 mm	99 mm	2.677 "
HARTING Technology Group 19412100301	IP65 - Dust Tight Water Resistant	Polyamide (PA) Nylon Glass Filled	Black	Bottom Entry	Base - Panel Mount	125 °C	-40 °C	Locking Clip (2) on Base Bottom	10B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 10B IP65 - Dust Tight, Water Resistant
