920-0088-01
ActiveSchmartboard, Inc.

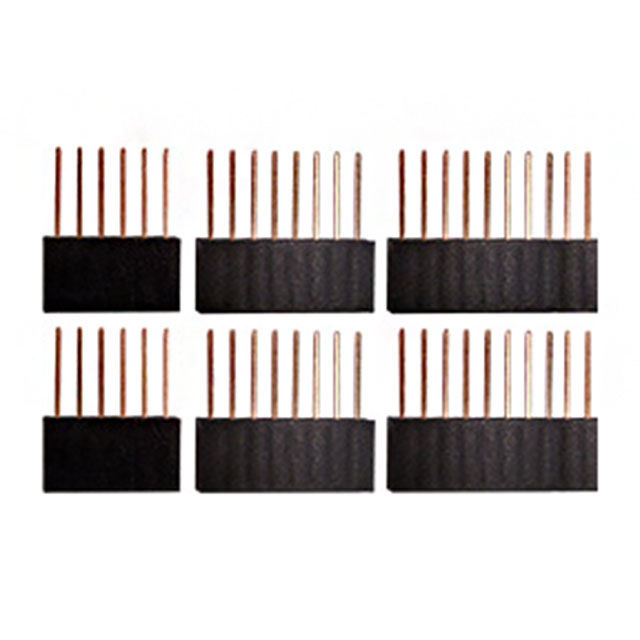

CONN HDR 8/10P 0.1 GOLD PCB 6PC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
920-0088-01
ActiveSchmartboard, Inc.
CONN HDR 8/10P 0.1 GOLD PCB 6PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 920-0088-01 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Length - Post | 10.5 mm |
| Contact Length - Post | 0.413 " |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Mounting Type | Through Hole |
| Number of Positions | 8, 10, 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.00 | |
Description
General part information
920-0088 Series
6, 8, 10 Position Header Connector 0.100" (2.54mm) Through Hole Gold
