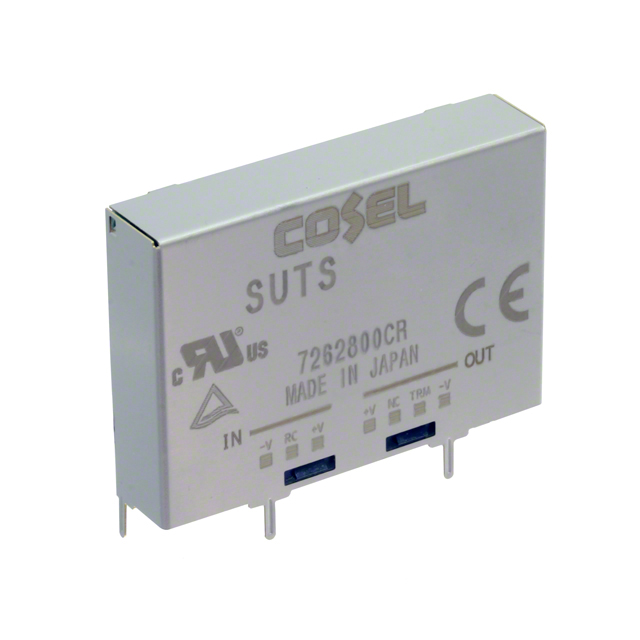

SUTS32415-G
ActiveCosel USA, Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SUTS32415-G
ActiveCosel USA, Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SUTS32415-G |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 78 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [x] | 1.18 in |
| Size / Dimension [y] | 0.36 in |
| Size / Dimension [y] | 9.2 mm |
| Size / Dimension [z] | 23.4 mm |
| Size / Dimension [z] | 0.92 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.49 | |
Description
General part information
SUTS32415 Series
Isolated Module DC DC Converter 1 Output 15V 200mA 18V - 36V Input
