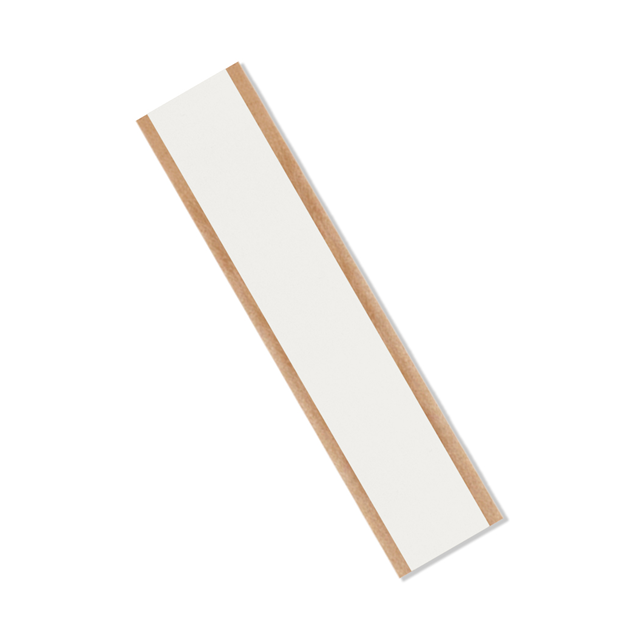

VF16W 1" X 10"-25

Active

TapeCase

TAPE DBL COATED FOAM WHT 1"X10"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VF16W 1" X 10"-25

Active

TapeCase

TAPE DBL COATED FOAM WHT 1"X10"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VF16W 1" X 10"-25

Adhesive	High Tack Acrylic
Backing, Carrier [custom]	PVC
Backing, Carrier [custom]	Paper
Color	White
Length	10 in
Length	254 mm
Tape Type	Double Coated Foam
Temperature Range	66 °C
Temperature Range	150 °F
Thickness	0.0625 in
Thickness	62.5 mils
Thickness	0.0625 "
Thickness	1.588 mm
Usage	Bonding
Width [x]	25.4 mm
Width [x]	1 in

VF16W Series

...

Part	Temperature Range	Temperature Range	Adhesive	Thickness	Thickness	Thickness	Thickness	Width [x]	Width [x]	Length	Length	Color	Usage	Backing, Carrier [custom]	Backing, Carrier [custom]	Tape Type	Width	Width	Width	Length	Length [x]	Length [x]	Width
TapeCase VF16W 1" X 10"-25	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm	25.4 mm	1 in	10 in	254 mm	White	Bonding	PVC	Paper	Double Coated Foam
TapeCase VF16W 0.5" X 0.5"-5	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm			0.5 in	12.7 mm	White	Bonding	PVC	Paper	Double Coated Foam	0.5 in	12.7 mm	0.5 in	0.5 in
TapeCase 2-5-VF16W	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm					White	Bonding	PVC	Paper	Double Coated Foam
TapeCase VF16W 7" X 9"-10	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm	177.8 mm	7 in	9 "	228.6 mm	White	Bonding	PVC	Paper	Double Coated Foam
TapeCase VF16W 0.75" X 4"-100	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm					White	Bonding	PVC	Paper	Double Coated Foam	19.05 mm	0.75 in	0.75 in		101.6 mm	4 "
TapeCase VF16W CIRCLE-4"-100	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm					White	Bonding	PVC	Paper	Double Coated Foam
TapeCase VF16W 4" X 7"-25	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm	101.6 mm	4 "	7 in	177.8 mm	White	Bonding	PVC	Paper	Double Coated Foam
TapeCase VF16W 3" X 1.25"-25	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm	76.2 mm	3 in	1.25 in	31.75 mm	White	Bonding	PVC	Paper	Double Coated Foam
TapeCase VF16W CIRCLE-2.5"-100	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm	63.5 mm	2.5 in			White	Bonding	PVC	Paper	Double Coated Foam
TapeCase VF16W 1.5" X 1.5"-100	66 °C	150 °F	High Tack Acrylic	0.0625 in	62.5 mils	0.0625 "	1.588 mm			1.5 "	38.1 mm	White	Bonding	PVC	Paper	Double Coated Foam		38.1 mm	1.5 "				1 1/2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	9	$ 28.42

Description

General part information

VF16W Series

Double Coated Foam Tape High Tack Acrylic Adhesive White 1.00" (25.40mm) X 10.00" (254.00mm)
