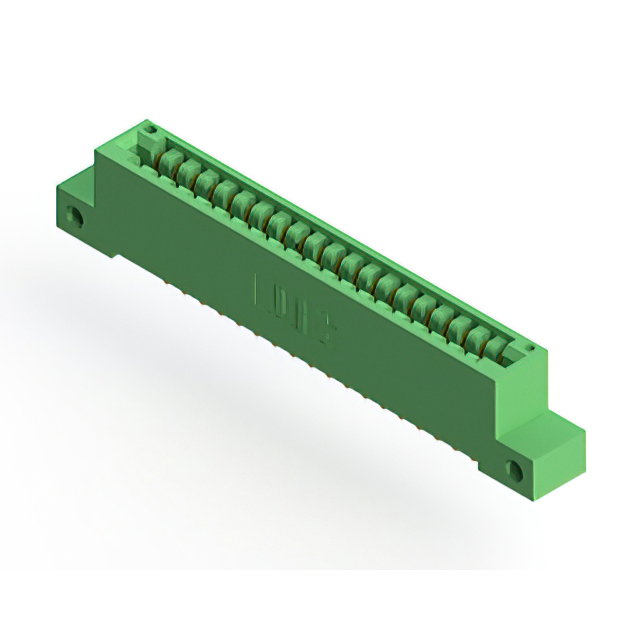

346-020-500-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 20POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-020-500-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 20POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-020-500-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Positions/Bay/Row [custom] | 20 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
346-020 Series
...
| Part | Contact Finish | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions/Bay/Row [custom] | Number of Rows | Flange Feature | Termination | Read Out | Gender | Pitch [x] | Pitch [x] | Card Type | Number of Positions | Material - Insulation | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination Rows | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Board Edge Straddle Mount | -40 °C | 105 ░C | Green | 10 | 2 | M3 Threaded Insert Top Mount Opening | Solder Eyelet(s) | Dual | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | 20 | Polyester Thermoplastic | Card Extender | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | |||||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 1 | Floating Bobbin Flush Mount | Solder Eyelet(s) | Single | Female | 0.125 in | 3.18 mm | Non Specified - Single Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 20 | 20 | 20 | 0.116 in | 2.95 mm | ||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 10 | 2 | Floating Bobbin Top Mount Opening | Solder Eyelet(s) | Dual | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.116 in | 2.95 mm | ||||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 1 | Flush Mount Side Opening Unthreaded | Solder Eyelet(s) | Single | Female | 0.125 in | 3.18 mm | Non Specified - Single Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 20 | 20 | 20 | 0.128 " | 3.25 mm | ||||
EDAC Inc. | Gold | Board Edge Straddle Mount | -40 °C | 105 ░C | Green | 10 | 2 | Solder | Dual | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | 20 | Polyester Thermoplastic | Card Extender | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 1 | 4-40 Threaded Insert Top Mount Opening | Solder | Single | Female | 0.125 in | 3.18 mm | Non Specified - Single Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 20 | 20 | 20 | ||||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 1 | Side Mount Opening Unthreaded | Wire Wrap | Single | Female | 0.125 in | 3.18 mm | Non Specified - Single Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 20 | 20 | 20 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 10 | 2 | Floating Bobbin Top Mount Opening | Wire Wrap | Dual | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | 0.116 in | 2.95 mm | ||||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 10 | 2 | Flush Mount M3 Threaded Insert Top Opening | Solder | Dual | Female | 0.125 in | 3.18 mm | Non Specified - Dual Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | ||||||||
EDAC Inc. | Gold | Through Hole | -40 °C | 105 ░C | Green | 1 | Floating Bobbin Flush Mount | Solder | Single | Female | 0.125 in | 3.18 mm | Non Specified - Single Edge | 20 | Polyester Thermoplastic | 10 Áin | 0.25 Ám | Copper Alloy | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | 20 | 20 | 20 | 0.116 in | 2.95 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 14.17 | |
Description
General part information
346-020 Series
20 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
