346-014-558-103
ActiveEDAC Inc.

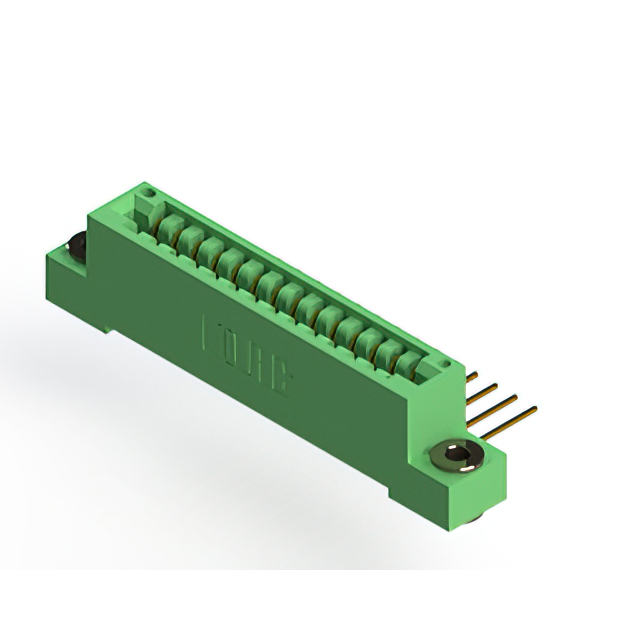

CONN EDGE SGL FMALE 14POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
346-014-558-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 14POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-014-558-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Wire Wrap, Solder |
| Termination Rows | 1 |
346-014 Series
...
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination Rows | Number of Rows | Mounting Type | Color | Gender | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Contact Material | Material - Insulation | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Card Type | Features | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 1 | 1 | Through Hole | Green | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Copper Alloy | Polyester Thermoplastic | 14 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Single Edge | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 2 | 2 | Through Hole | Green | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | Polyester Thermoplastic | 7 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Dual Edge | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 2 | 2 | Through Hole | Green | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Eyelet(s) | Copper Alloy | Polyester Thermoplastic | 7 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Dual Edge | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 1 | 1 | Through Hole | Green | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | Polyester Thermoplastic | 14 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Single Edge | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 1 | 1 | Through Hole | Green | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Copper Alloy | Polyester Thermoplastic | 14 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Single Edge | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 1 | 1 | Through Hole | Green | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | Copper Alloy | Polyester Thermoplastic | 14 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Single Edge | Card Guides | 4-40 Threaded Insert Top Mount Opening | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 1 | 1 | Through Hole Right Angle | Green | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Wire Wrap | Copper Alloy | Polyester Thermoplastic | 14 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Single Edge | Floating Bobbin Flush Mount | 0.116 in | 2.95 mm | |
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 1 | 1 | Through Hole Right Angle | Green | Female | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder Wire Wrap | Copper Alloy | Polyester Thermoplastic | 14 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | 0.156 in | 3.96 mm | |
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 2 | 2 | Through Hole | Green | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | Polyester Thermoplastic | 7 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | |
EDAC Inc. | 10 Áin | 0.25 Ám | Cantilever | 2 | 2 | Through Hole | Green | Female | Dual | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | Copper Alloy | Polyester Thermoplastic | 7 | 0.125 in | 3.18 mm | Gold | -40 °C | 105 ░C | 14 | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.13 | |
Description
General part information
346-014 Series
14 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
