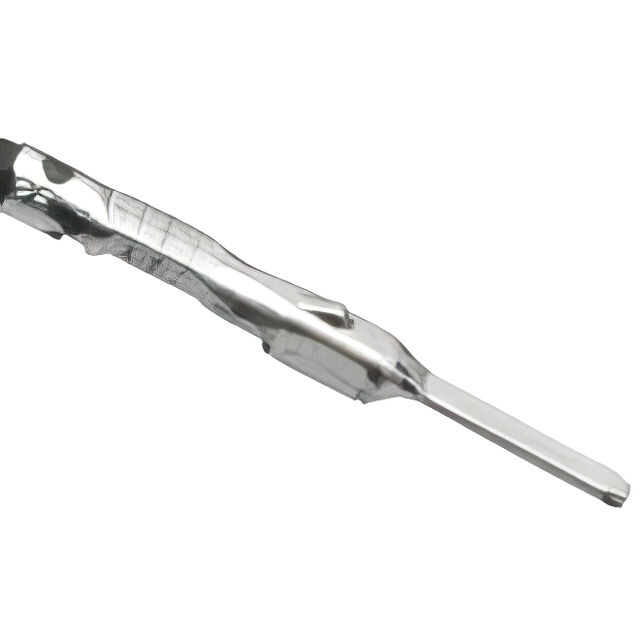

0312961008
ObsoleteMolex
CONN PIN 18-20AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
0312961008
ObsoleteMolex
CONN PIN 18-20AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0312961008 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Blade |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.61 | |
| 10 | $ 2.22 | |||
| 100 | $ 1.84 | |||
| 1000 | $ 1.45 | |||
| 2500 | $ 1.35 | |||
| Tape & Reel (TR) | 35000 | $ 0.22 | ||
Description
General part information
031296 Series
Blade Contact Gold 18-20 AWG Crimp
Documents
Technical documentation and resources
No documents available
