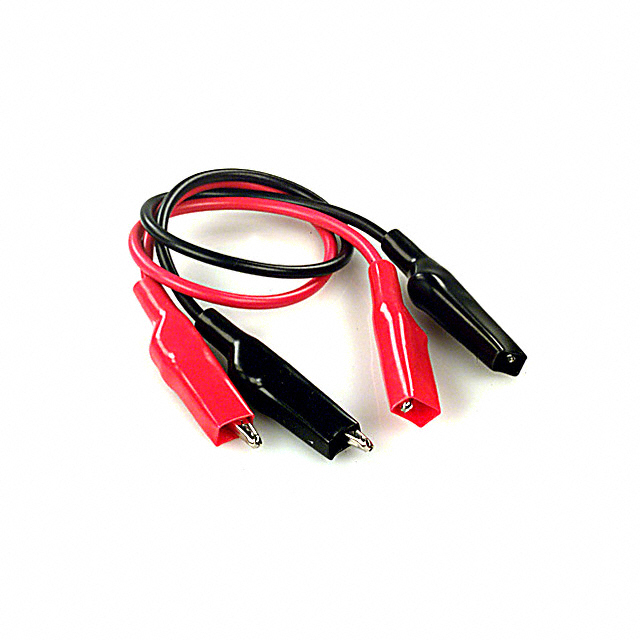

684-12 R/B
ActiveE-Z-Hook
TEST LEAD GATOR TO GATOR 12"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
684-12 R/B
ActiveE-Z-Hook
TEST LEAD GATOR TO GATOR 12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 684-12 R/B |
|---|---|
| 1st Connector | Insulated, Alligator Clip |
| 2nd Connector | Alligator Clip, Insulated |
| Cable Length | 12 in |
| Cable Length | 304.8 mm |
| Contents | Black and Red, 2 Leads |
| Current Rating (Amps) | 4 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Temperature Range | 105 °C |
| Temperature Range | 221 °F |
| Voltage - Rated | 5 kV |
| Voltage - Rated | 5 kV |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.88 | |
| 100 | $ 14.14 | |||
| 250 | $ 13.40 | |||
| 500 | $ 12.66 | |||
Description
General part information
684-12 Series
12.0" (304.80mm) Alligator Clip, Insulated To Alligator Clip, Insulated Test Lead 5000VDC (5kV) 2 Leads, Black and Red
