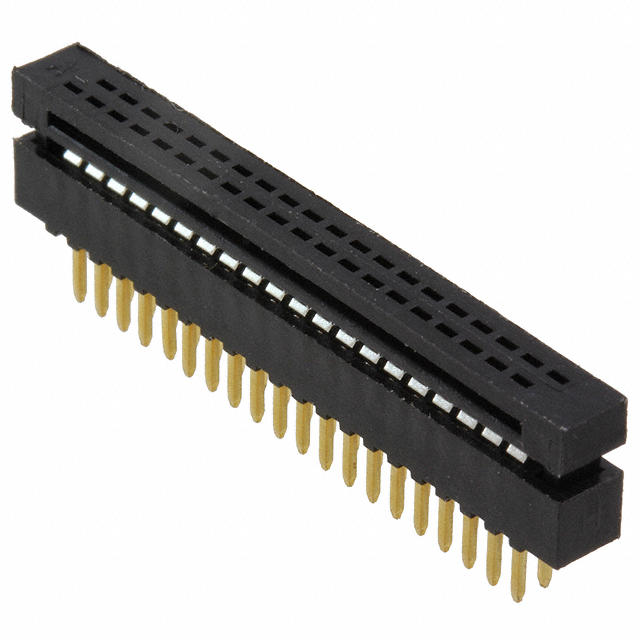

3240-40-00
ActiveCnC Tech, LLC
CONN DIP PLG IDC 40POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
3240-40-00
ActiveCnC Tech, LLC
CONN DIP PLG IDC 40POS VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3240-40-00 |
|---|---|
| Board-Side Pitch | 1.27 mm |
| Board-Side Pitch | 0.05 in |
| Cable Pitch [custom] | 0.64 mm |
| Cable Pitch [custom] | 0.025 in |
| Cable Termination | IDC |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 40 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.22 | |
| 19 | $ 3.83 | |||
| 38 | $ 3.63 | |||
| 57 | $ 3.54 | |||
| 114 | $ 3.37 | |||
| 266 | $ 2.95 | |||
| 513 | $ 2.87 | |||
| 1007 | $ 2.45 | |||
| 2508 | $ 2.28 | |||
Description
General part information
3240-40 Series
40 Position Ribbon Cable, DIP Header Connector IDC Through Hole
Documents
Technical documentation and resources
