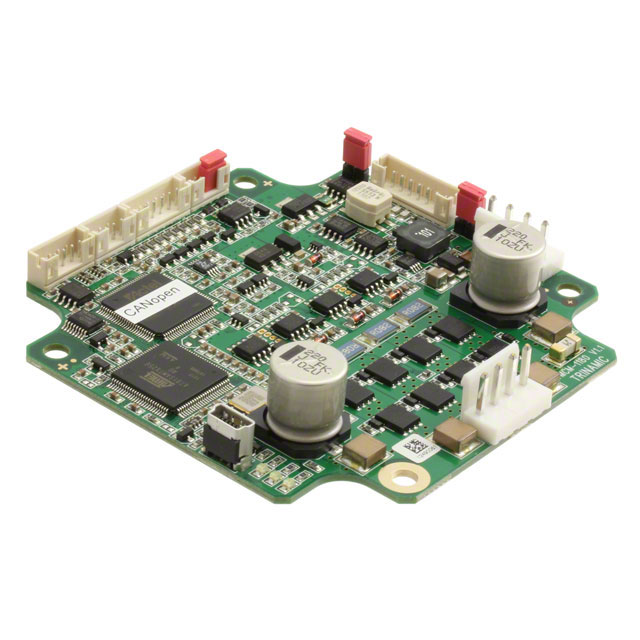

TMCM-1180-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 5.5A 18-55V LOAD
Deep-Dive with AI
Search across all available documentation for this part.
TMCM-1180-CANOPEN
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER DRIVER 5.5A 18-55V LOAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1180-CANOPEN |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 5.5 A |
| Interface | RS-485, RS-232, Step / Direction, USB, CAN |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Type | Board |
| Voltage - Load [Max] | 55 V |
| Voltage - Load [Min] | 18 V |
| Voltage - Supply [Max] | 48 V |
| Voltage - Supply [Min] | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 384.68 | |
Description
General part information
TMCM-1180 Series
Stepper, Bipolar 24 ~ 48VDC Supply 5.5A 18 ~ 55V Load
Documents
Technical documentation and resources
No documents available
