U100UL-024KA-4
ActiveMicronel USA

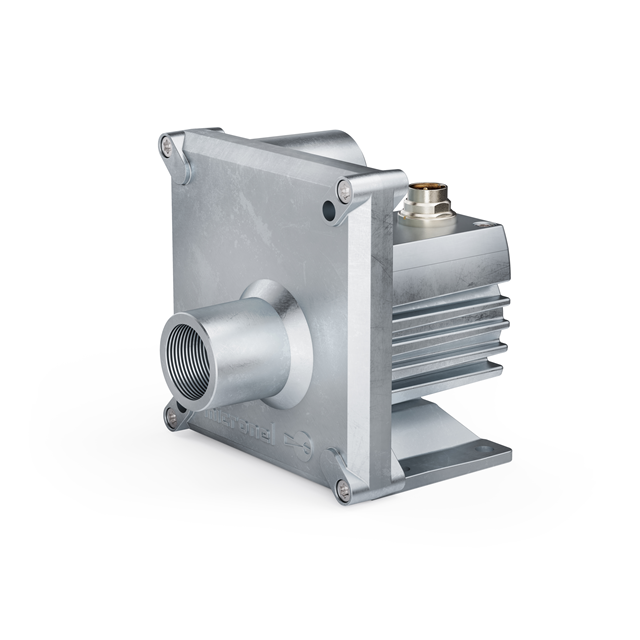

FAN BLOWER 107X117MM 24VDC 6 POS
Deep-Dive with AI
Search across all available documentation for this part.
U100UL-024KA-4
ActiveMicronel USA
FAN BLOWER 107X117MM 24VDC 6 POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | U100UL-024KA-4 |
|---|---|
| Air Flow | 30.5 CFM |
| Air Flow | 0.854 m³/min |
| Approval Agency | CE, cURus |
| Current Rating (Amps) | 10 A |
| Fan Type | Blower |
| Features | Speed Control (SP), Speed Sensor (Tach), Locked Rotor Protection |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Lifetime @ Temp. | 20000 Hrs |
| Material - Blade | Polyamide (PA6), Nylon 6 |
| Material - Frame | Aluminum |
| Noise | 55 dB |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Max] | 113 F |
| Operating Temperature [Min] | -4 F |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 161 W |
| RPM | 43000 RPM |
| Size / Dimension [x] | 107 mm |
| Size / Dimension [y] | 106 mm |
| Static Pressure | 11400 Pa |
| Static Pressure | 45.767 in H2O |
| Termination | 6 Position Circular Connector |
| Voltage - Rated | 24 VDC |
| Width [x] | 117 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 630.00 | |
Description
General part information
U100UL-024KA-4
Fan Blower 24VDC Rectangular - 107mm L x 106mm H 30.5 CFM (0.854m³/min) 6 Position Circular Connector
Documents
Technical documentation and resources
No documents available
