T4131012021-000 - T4131012021-000

T4131012021-000

Active
TE Connectivity Raychem Cable Protection

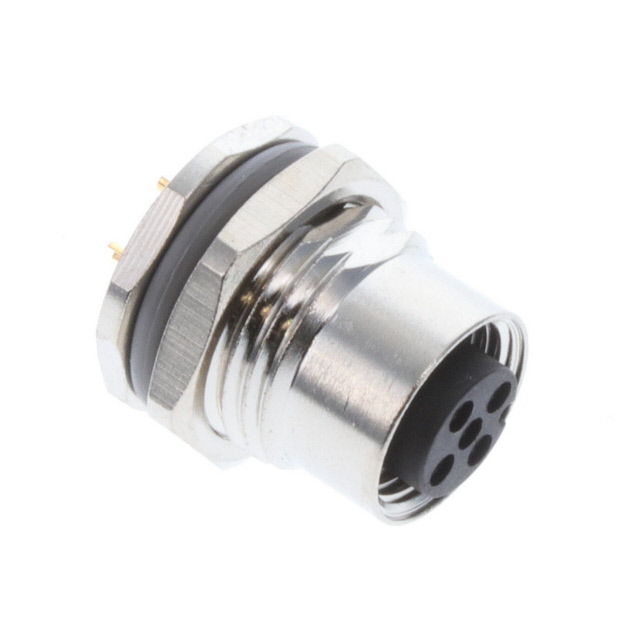

SENSOR CONNECTOR, M12, FEMALE, 2 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM12 connection application specificationIndustrial M8 & M12 Series Circular connector+8
T4131012021-000 - T4131012021-000

T4131012021-000

Active
TE Connectivity Raychem Cable Protection

SENSOR CONNECTOR, M12, FEMALE, 2 POSITIONS, SOLDER SOCKET, STRAIGHT PANEL MOUNT

Deep-Dive with AI

DocumentsM12 connection application specificationIndustrial M8 & M12 Series Circular connector+8

Technical Specifications

Parameters and characteristics for this part

SpecificationT4131012021-000
ApplicationsIndustrial
ColorSilver
Connector TypeFemale Sockets, Plug
Contact Finish - MatingGold
Contact Finish Thickness - Mating3 µin
Contact Finish Thickness - Mating0.076 µm
Contact MaterialCopper Alloy
Current Rating (Amps)4 A
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolyamide (PA66), Nylon 6/6
Material Flammability RatingUL94 V-0
Mounting FeatureBulkhead - Front Side Nut
Number of Positions2
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
OrientationA
Primary MaterialMetal
Shell FinishNickel
Shell MaterialCopper Alloy
Shell Size - InsertM12-2
ShieldingUnshielded
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 5.75
10$ 5.04
100$ 4.51
1000$ 3.74
NewarkEach 1$ 6.84
10$ 5.05
25$ 4.91
50$ 4.77
100$ 4.63
250$ 4.48

Description

General part information

T41310 Series

2 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount & Wire Mount, Reverse Gender, Nickel, M12 Connector
