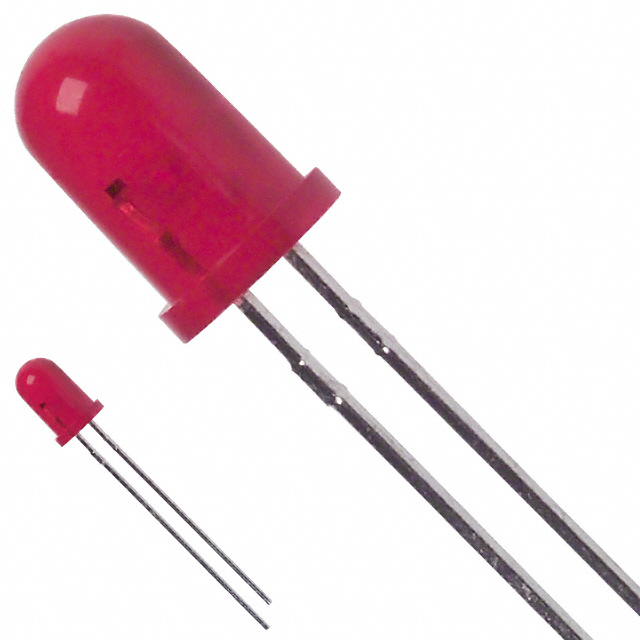

SSL-LX5093HD

Obsolete

Lumex Opto/Components Inc.

LED RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX5093HD

Obsolete

Lumex Opto/Components Inc.

LED RED DIFFUSED T-1 3/4 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSL-LX5093HD

Color	Red
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	8.6 mm
Lens Color	Red
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	6 mcd
Mounting Type	Through Hole
Package / Case	Radial
Supplier Device Package	T-1 3/4
Viewing Angle	30 °
Voltage - Forward (Vf) (Typ)	2.25 V
Wavelength - Peak	700 nm

SSL-LX5093 Series

...

Part	Height (Max) [Max] [z]	Lens Color	Voltage - Forward (Vf) (Typ)	Color	Millicandela Rating	Supplier Device Package	Current - Test	Lens Size	Lens Size	Lens Transparency	Lens Style	Mounting Type	Viewing Angle	Package / Case	Configuration	Wavelength - Peak
Lumex Opto/Components Inc. SSL-LX5093UWC/G	8.6 mm	Colorless	3.5 V	White	11000 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Clear	Round with Domed Top	Through Hole	20 °	Radial	Standard
Lumex Opto/Components Inc. SSL-LX5093XYC	8.6 mm	Colorless	2.1 V	Yellow	1300 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Clear	Round with Domed Top	Through Hole	20 °	Radial	Standard	590 nm
Lumex Opto/Components Inc. SSL-LX5093SID	8.6 mm	Red	2 V	Red	700 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Diffused	Round with Domed Top	Through Hole	60 °	Radial	Standard	636 nm
Lumex Opto/Components Inc. SSL-LX5093UEGC	8.6 mm	Colorless	3.2 V	Green	12000 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Clear	Round with Domed Top	Through Hole	20 °	Radial	Standard	500 nm
Lumex Opto/Components Inc. SSL-LX5093HD	8.6 mm	Red	2.25 V	Red	6 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Diffused	Round with Domed Top	Through Hole	30 °	Radial	Standard	700 nm
Lumex Opto/Components Inc. SSL-LX5093SRC/DW	8.6 mm	Colorless	1.7 V	Red	1800 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Clear	Round with Domed Top	Through Hole	30 °	Radial	Standard	660 nm
Lumex Opto/Components Inc. SSL-LX5093SYD	8.6 mm	Yellow	2.1 V	Yellow	300 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Diffused	Round with Domed Top	Through Hole	60 °	Radial	Standard	590 nm
Lumex Opto/Components Inc. SSL-LX5093LIT	8.6 mm	Red	2 V	Red	200 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Clear	Round with Domed Top	Through Hole	30 °	Radial	Standard	635 nm
Lumex Opto/Components Inc. SSL-LX5093HT	8.6 mm	Red	2 V	Red	25 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Clear	Round with Domed Top	Through Hole	30 °	Radial	Standard	700 nm
Lumex Opto/Components Inc. SSL-LX5093YT	8.6 mm	Yellow	2.1 V	Yellow	40 mcd	T-1 3/4	20 mA	T-1 3/4	5 mm	Clear	Round with Domed Top	Through Hole	30 °	Radial	Standard	585 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.24

Description

General part information

SSL-LX5093 Series

Red LED Indication - Discrete 2.25V Radial

Documents

Technical documentation and resources

No documents available
