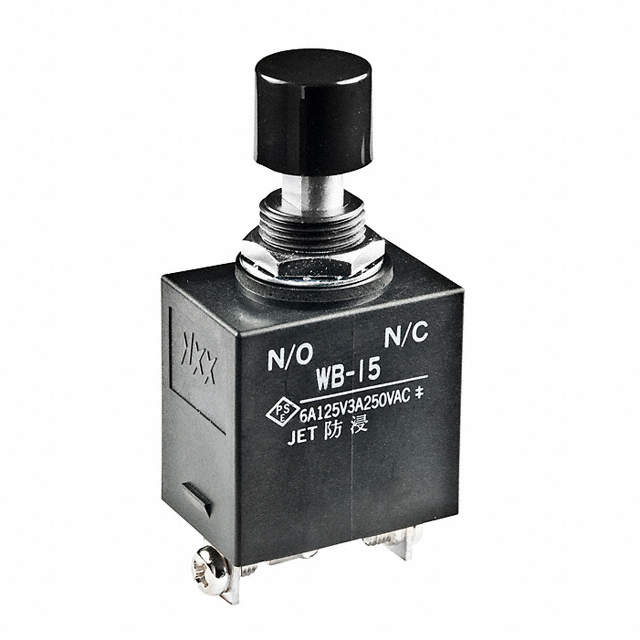

WB15T-DA

Active

NKK Switches

SWITCH PUSH BUTTON ON (ON) SPDT ROUND PLUNGER 6A 250VAC 30VDC MOMENTARY PANEL MOUNT SCREW LUG

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSH BUTTON ON (ON) SPDT ROUND PLUNGER 6A 250VAC 30VDC MOMENTARY PANEL MOUNT SCREW LUG

Technical Specifications

Parameters and characteristics for this part

Specification	WB15T-DA

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	6 A
Electrical Life	15000 Cycles
Features	Stainless Steel
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Rear
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Mechanical Life	Voltage Rating - AC	Voltage Rating - DC	Circuit	Ingress Protection	Termination Style	Mounting Type	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Electrical Life	Color - Actuator/Cap	Actuator Marking	Features	Switch Function	Type
NKK Switches WB15T-EF	70 °C	-30 ░C	Button Round	30000 Steps	125 V	30 V	SPDT	IP67 - Dust Tight Waterproof	Screw Terminal	Panel Mount Rear	12.5 mm	6 A	15000 Cycles	Green	No Marking	Stainless Steel	On-Mom	Standard
NKK Switches WB15T-DA	70 °C	-30 ░C	Button Round	30000 Steps	125 V	30 V	SPDT	IP67 - Dust Tight Waterproof	Screw Terminal	Panel Mount Rear	12.5 mm	6 A	15000 Cycles	Black	No Marking	Stainless Steel	On-Mom	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear
