25SH-C-02-TS

Active

Adam Tech

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

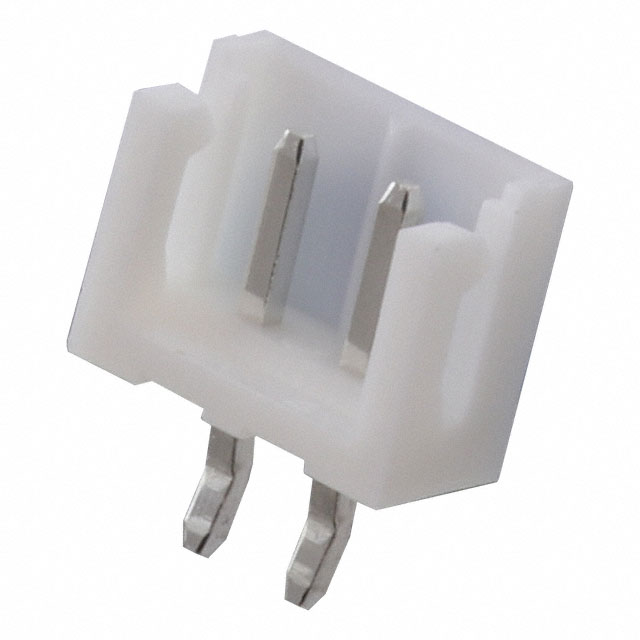

25SH-C-02-TS

Active

Adam Tech

CONN HEADER VERT 2POS 2.5MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	25SH-C-02-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	6 mm
Insulation Height	0.236 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	250 VAC

25SH-C Series

Part	Number of Rows	Contact Type	Number of Positions Loaded	Number of Positions	Contact Length - Post	Contact Length - Post	Connector Type	Style	Fastening Type	Contact Finish - Post	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Termination	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Material	Shrouding	Contact Shape	Voltage Rating	Insulation Color	Insulation Height	Insulation Height
Adam Tech 25SH-C-09-TR	1	Male Pin	All	9	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole Right Angle	3 A	-25 °C	85 °C	0.165 in	4.2 mm	Kinked Pin Solder	2.5 mm	0.098 in	Brass	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	Square	250 VAC	White
Adam Tech 25SH-C-10-TR	1	Male Pin	All	10	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole Right Angle	3 A	-25 °C	85 °C	0.165 in	4.2 mm	Kinked Pin Solder	2.5 mm	0.098 in	Brass	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	Square	250 VAC	White
Adam Tech 25SH-C-07-TR	1	Male Pin	All	7	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole Right Angle	3 A	-25 °C	85 °C	0.165 in	4.2 mm	Kinked Pin Solder	2.5 mm	0.098 in	Brass	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	Square	250 VAC	White
Adam Tech 25SH-C-04-TR	1	Male Pin	All	4	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole Right Angle	3 A	-25 °C	85 °C	0.165 in	4.2 mm	Kinked Pin Solder	2.5 mm	0.098 in	Brass	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	Square	250 VAC	White
Adam Tech 25SH-C-08-TS	1	Male Pin	All	8	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole	3 A	-25 °C	85 °C			Kinked Pin Solder	2.5 mm	0.098 in	Brass	Nylon Polyamide (PA)	Shrouded - 3 Wall	Square	250 VAC	Natural	6 mm	0.236 in
Adam Tech 25SH-C-08-TR	1	Male Pin	All	8	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole Right Angle	3 A	-25 °C	85 °C	0.165 in	4.2 mm	Kinked Pin Solder	2.5 mm	0.098 in	Brass	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	Square	250 VAC	White
Adam Tech 25SH-C-05-TR	1	Male Pin	All		0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole Right Angle	3 A	-25 °C	85 °C	0.165 in	4.2 mm	Kinked Pin Solder	2.5 mm	0.098 in	Brass	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	Square	250 VAC	White
Adam Tech 25SH-C-02-TR	1	Male Pin	All	2	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole Right Angle	3 A	-25 °C	85 °C	0.165 in	4.2 mm	Kinked Pin Solder	2.5 mm	0.098 in	Brass	Polyamide (PA66) Nylon 6/6	Shrouded - 4 Wall	Square	250 VAC	White
Adam Tech 25SH-C-02-TS	1	Male Pin	All	2	0.13 in	3.3 mm	Header	Board to Cable/Wire	Friction Lock	Tin	UL94 V-0	Through Hole	3 A	-25 °C	85 °C			Kinked Pin Solder	2.5 mm	0.098 in	Brass	Nylon Polyamide (PA)	Shrouded - 3 Wall	Square	250 VAC	Natural	6 mm	0.236 in
