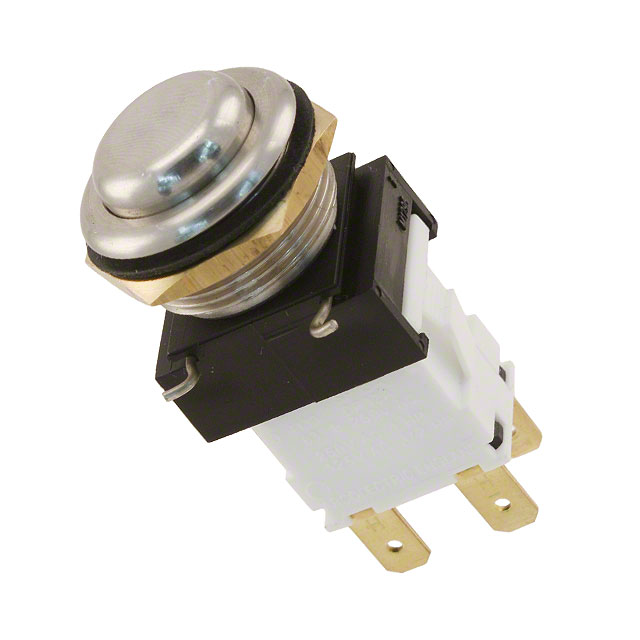

H8350RP-W

Active

BULGIN LIMITED

SWITCH PUSHBUTTON DPST 12A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH PUSHBUTTON DPST 12A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	H8350RP-W

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	12 A
Electrical Life	10000 Cycles
Ingress Protection	IP66
Mounting Type	Panel Mount, Rear
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Anti-Vandal
Voltage Rating - AC	250 V

Part	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Termination Style	Switch Function	Actuator Type	Color - Actuator/Cap	Circuit	Electrical Life	Voltage Rating - AC	Actuator Marking	Mounting Type	Type	Ingress Protection
BULGIN LIMITED H8350RP-W	12 A	19.2 mm	Quick Connect - 0.187" (4.7mm)	On-Off	Button Round	Silver	DPST	10000 Cycles	250 V	No Marking	Panel Mount Rear	Anti-Vandal	IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Anti-Vandal Panel Mount, Rear
