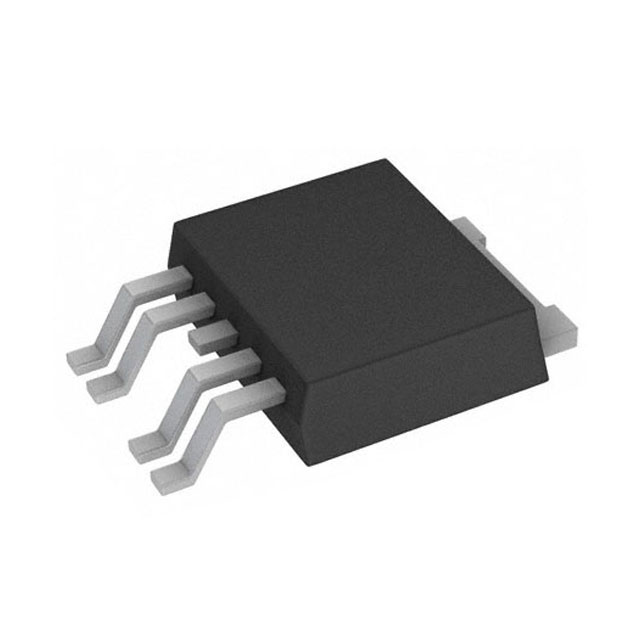

S-1214B33H-V5T2U7

Active

ABLIC Inc.

IC REG LINEAR 3.3V 1A TO252-5S

Search across all available documentation for this part.

Active

ABLIC Inc.

IC REG LINEAR 3.3V 1A TO252-5S

Technical Specifications

Parameters and characteristics for this part

Specification	S-1214B33H-V5T2U7

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	9.8 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	DPAK (4 Leads + Tab), TO-252-5, TO-252AD
Protection Features	Over Current, Over Temperature
PSRR	60 dB
Supplier Device Package	TO-252-5S
Voltage - Input (Max) [Max]	36 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.32 V

Part	Output Type	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features	Mounting Type	Current - Output	Output Configuration	PSRR	Supplier Device Package	Voltage - Output (Min/Fixed)	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Number of Regulators	Voltage - Input (Max) [Max]	Package / Case
ABLIC Inc. S-1214B33H-V5T2U7	1.81 mOhm	Enable	105 °C	-40 °C	Over Current Over Temperature	Surface Mount	1 A	Positive	60 dB	TO-252-5S	3.3 V	9.8 µA	0.32 V	1	36 V	DPAK (4 Leads + Tab) TO-252-5 TO-252AD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-5S
