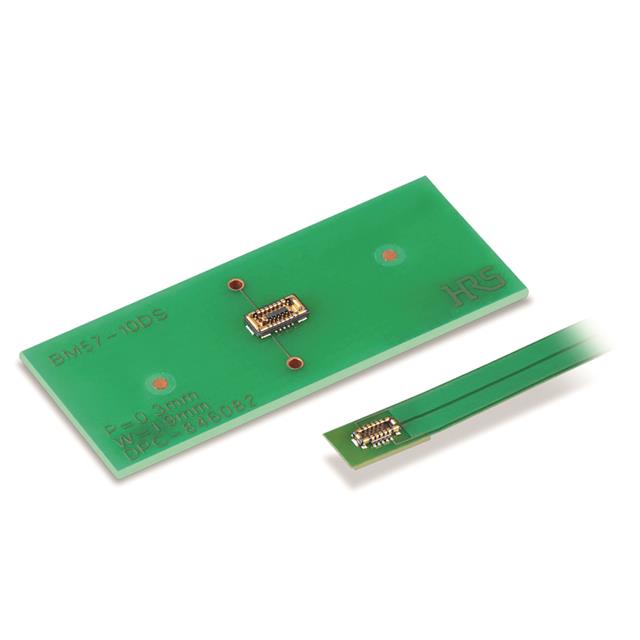

BM57B0.6-10DP/2-0.3V(53)

Active

Hirose Electric USA, Inc.

CONN HDR 0.3MM SMD 10POS + 2PWR

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN HDR 0.3MM SMD 10POS + 2PWR

Technical Specifications

Parameters and characteristics for this part

Specification	BM57B0.6-10DP/2-0.3V(53)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	1.97 Áin
Contact Finish Thickness	0.05 Ám
Features	Solder Retention
Height Above Board [z]	0.48 mm
Height Above Board [z]	0.019 "
Mated Stacking Heights	0.6 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.012 in
Pitch [x]	0.3 mm

Part	Height Above Board [z]	Height Above Board [z]	Connector Type	Pitch [x]	Pitch [x]	Number of Rows	Features	Contact Finish	Number of Positions	Mounting Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
Hirose Electric USA, Inc. BM57B0.6-10DP/2-0.3V(51)	0.48 mm	0.019 "	Header Outer Shroud Contacts	0.012 in	0.3 mm	2	Solder Retention	Gold	10	Surface Mount	0.6 mm
Hirose Electric USA, Inc. BM57B0.6-10DS/2-0.3V(53)	0.55 mm	0.021 in	Center Strip Contacts Receptacle	0.012 in	0.3 mm	2	Solder Retention	Gold	10	Surface Mount	0.6 mm	1.97 Áin	0.05 Ám
Hirose Electric USA, Inc. BM57B0.6-10DP/2-0.3V(53)	0.48 mm	0.019 "	Header Outer Shroud Contacts	0.012 in	0.3 mm	2	Solder Retention	Gold	10	Surface Mount	0.6 mm	1.97 Áin	0.05 Ám

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
