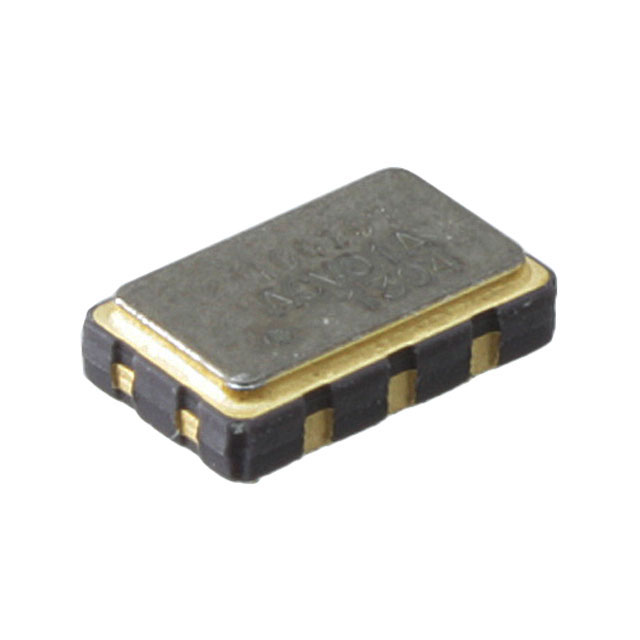

XTC312G81.518000I
ActiveRenesas Electronics Corporation
LGA 2.50X3.20X0.85 MM, 1.25 MM P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XTC312G81.518000I
ActiveRenesas Electronics Corporation
LGA 2.50X3.20X0.85 MM, 1.25 MM P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XTC312G81.518000I |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 61 mA |
| Frequency | 1.681518 GHz |
| Frequency Stability | 3 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.85 mm |
| Height - Seated (Max) [Max] [z] | 0.033 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CML |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 500 | $ 7.50 | |
Description
General part information
XTC312 Series
1.681518 GHz TCXO CML Oscillator 1.8V Enable/Disable 8-SMD, No Lead
