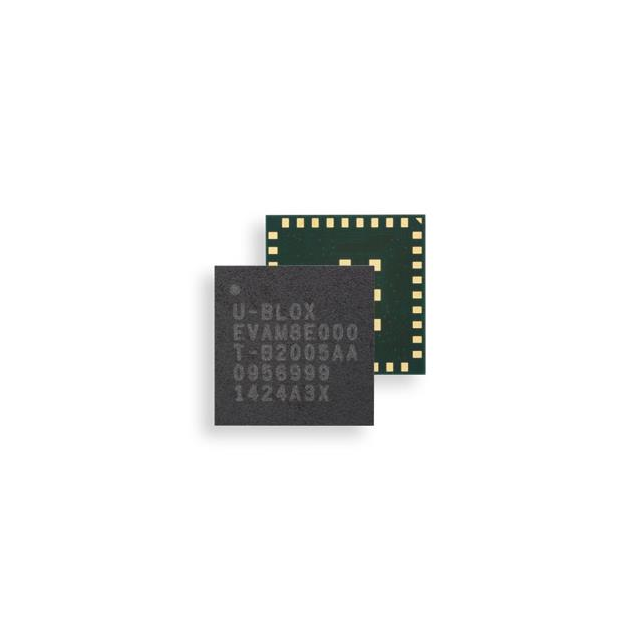

EVA-M8E-0

Active

u-blox

RF RCVR GNSS/GPS 1.561/1.575GHZ

Search across all available documentation for this part.

Active

u-blox

RF RCVR GNSS/GPS 1.561/1.575GHZ

Technical Specifications

Parameters and characteristics for this part

Specification	EVA-M8E-0

Applications	General Purpose
Current - Receiving	29 mA
Data Interface	I2C, DDC, USB, UART, SPI
Frequency	1.602 GHz, 1.561 GHz, 1.575 GHz
Modulation or Protocol	GPS, GLONASS, Galileo, BeiDou, QSZZ
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	43-TFLGA
Sensitivity	-160 dBm
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	RF Family/Standard	Frequency	Protocol	Antenna Type	Current - Receiving	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting	Serial Interfaces	Mounting Type	Data Interface	Applications	Modulation or Protocol	Sensitivity
u-blox EVA-M8M-1	85 °C	-40 °C	9.6 kBaud	Navigation	1.575 GHz	Beidou Galileo GLONASS GNSS GPS	Antenna Not Included	17 mA	43-SMD Module	1.65 V	3.6 V	17 mA	I2C SPI UART USB	Surface Mount
u-blox EVA-M8E-0	85 °C	-40 °C			1.561 GHz 1.575 GHz 1.602 GHz			29 mA	43-TFLGA	2.7 V	3.6 V			Surface Mount	DDC I2C SPI UART USB	General Purpose	BeiDou Galileo GLONASS GPS QSZZ	-160 dBm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 29.00
	Digi-Reel®	1	$ 29.00
	Tape & Reel (TR)	500	$ 14.70

General part information

EVA-M8 RF Receiver BeiDou, Galileo, Glonass, GPS, QSZZ 1.561GHz, 1.575GHz, 1.602GHz -160dBm

Technical documentation and resources
