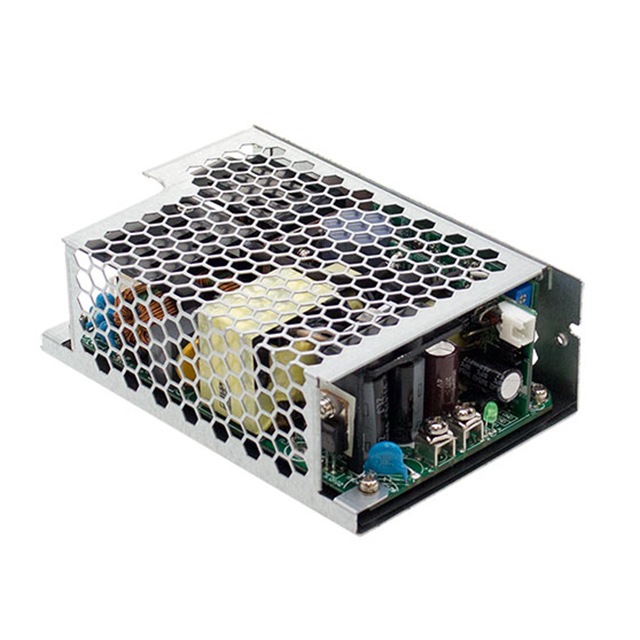

RPS-300-24-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RPS-300-24-C

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPS-300-24-C

Applications	Medical
Approval Agency	CB, CE, cURus, TUV
Current - Output 1	8.33 A
Efficiency	92.5 %
Features	Universal Input, Standby Output, Adjustable Output, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 °C
Power (Watts)	300 W
Power (Watts)	200 W
Size / Dimension [x]	129.8 mm
Size / Dimension [x]	5.11 in
Size / Dimension [y]	3.39 in
Size / Dimension [y]	86.1 mm
Size / Dimension [z]	1.69 in
Size / Dimension [z]	42.9 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	127 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

RPS-300 Series

Part	Current - Output 1	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Features	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Mounting Type	Type	Power (Watts)	Power (Watts)	Efficiency
MEAN WELL USA Inc. RPS-300-48-C	4.17 A	Medical	70 °C	-30 °C	48 V	Adjustable Output Remote Sense Standby Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	CB CE cURus TUV	1.69 in	3.39 in	129.8 mm	42.9 mm	86.1 mm	5.11 in	4000 V	Chassis Mount	Enclosed	300 W	200 W	93 %
MEAN WELL USA Inc. RPS-300-12-C	16.67 A	Medical	70 °C	-30 °C	12 V	Adjustable Output Remote Sense Standby Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	CB CE cURus TUV	1.69 in	3.39 in	129.8 mm	42.9 mm	86.1 mm	5.11 in	4000 V	Chassis Mount	Enclosed	300 W	200 W	90 %
MEAN WELL USA Inc. RPS-300-12	16.67 A	Medical	70 °C	-30 °C	12 V	Adjustable Output Remote Sense Standby Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	CB CE cURus TUV	1.37 in	3 "	127 mm	34.8 mm	76.2 mm	5 in	4000 V	Chassis Mount	Open Frame	300 W	200 W	90 %
MEAN WELL USA Inc. RPS-300-48	4.17 A	Medical	70 °C	-30 °C	48 V	Adjustable Output Remote Sense Standby Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	CB CE cURus TUV	1.37 in	3 "	127 mm	34.8 mm	76.2 mm	5 in	4000 V	Chassis Mount	Open Frame	300 W	200 W	93 %
MEAN WELL USA Inc. RPS-300-15-C	13.33 A	Medical	70 °C	-30 °C	15 V	Adjustable Output Remote Sense Standby Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	CB CE cURus TUV	1.69 in	3.39 in	129.8 mm	42.9 mm	86.1 mm	5.11 in	4000 V	Chassis Mount	Enclosed	300 W	200 W	90 %
MEAN WELL USA Inc. RPS-300-15	13.33 A	Medical	70 °C	-30 °C	15 V	Adjustable Output Remote Sense Standby Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	CB CE cURus TUV	1.37 in	3 "	127 mm	34.8 mm	76.2 mm	5 in	4000 V	Chassis Mount	Open Frame	300 W	200 W	90 %
MEAN WELL USA Inc. RPS-300-24-C	8.33 A	Medical	70 °C	-30 °C	24 V	Adjustable Output Remote Sense Standby Output Universal Input	90 VAC 127 VDC	264 VAC 370 VDC	1	CB CE cURus TUV	1.69 in	3.39 in	129.8 mm	42.9 mm	86.1 mm	5.11 in	4000 V	Chassis Mount	Enclosed	300 W	200 W	92.5 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 83.17
		5	$ 78.35
		10	$ 76.37
		25	$ 73.82

Description

General part information

RPS-300 Series

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
