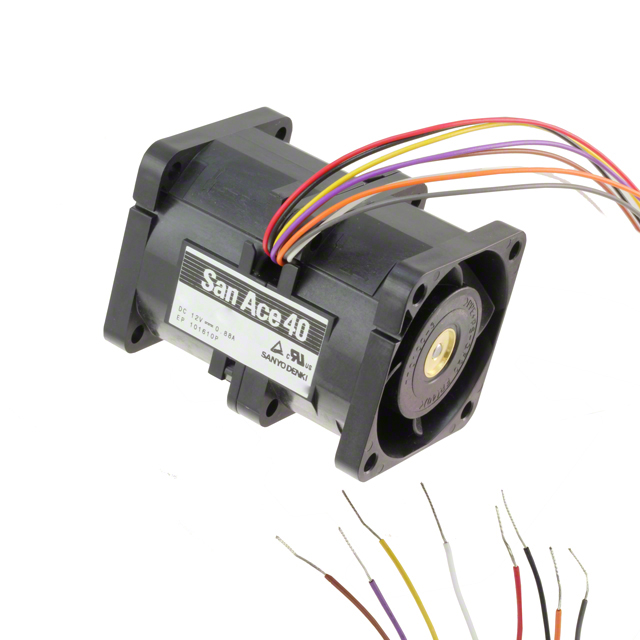

9CRB0412P5K001

Obsolete

Sanyo Denki America Inc.

FAN AXIAL DUAL 40X56MM 12VDC

Search across all available documentation for this part.

Obsolete

Sanyo Denki America Inc.

FAN AXIAL DUAL 40X56MM 12VDC

Technical Specifications

Parameters and characteristics for this part

Part	Noise	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	RPM [custom]	RPM [custom]	Lifetime @ Temp.	Weight	Weight	Material - Blade	Fan Type	Current Rating (Amps)	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Approval Agency	Material - Frame	Width [x]	Voltage - Rated	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Power (Watts)
Sanyo Denki America Inc. 9CRB0412P5J201	61 dB(A)	0.703 m³/min	25.1 CFM	-20 °C	70 °C	-20 C	70 °C	4 Wire Leads per Fan	16000 RPM	17300 RPM	40000 Hrs	0.222 lb	100.7 g	Plastic	Tubeaxial (Dual)	0.72 A	Ball	13.2 VDC	10.8 VDC	2.61 in H2O	650.1 Pa	cURus TUV	Plastic	56 mm	12 VDC	40 mm	Square	40 mm	8.64 W
Sanyo Denki America Inc. 9CRB0412P5K001	62 dB(A)	0.75 mł/min	26.8 CFM	-20 °C	70 °C	-20 C	70 °C	4 Wire Leads per Fan	17000 RPM	19000 RPM	40000 Hrs	0.222 lb	100.7 g	Plastic	Tubeaxial (Dual)	880 mA	Ball	13.2 VDC	10.8 VDC	2.93 in H2O	729.8 Pa	cURus TUV	Plastic	56 mm	12 VDC	40 mm	Square	40 mm	10.56 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.50

General part information

Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 26.8 CFM (0.750m³/min) 4 Wire Leads per Fan
