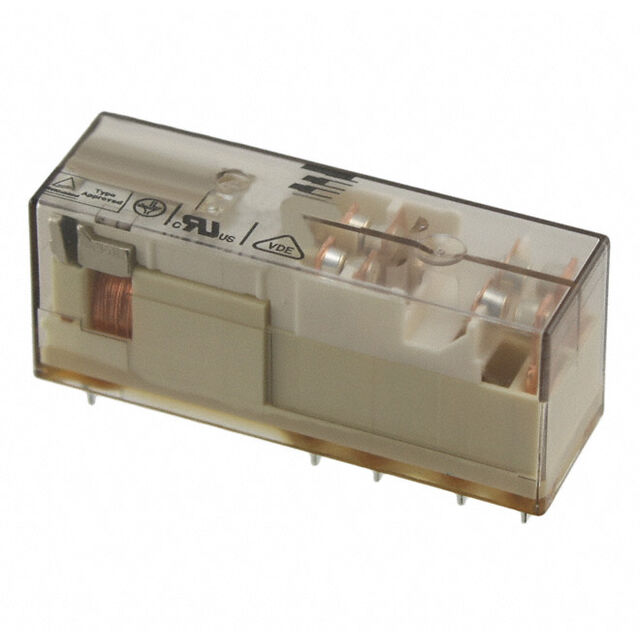

SR4D4060
ActiveTE Connectivity Potter & Brumfield Relays
RELAY SAFETY 4PST 8A 60V
Deep-Dive with AI
Search across all available documentation for this part.
SR4D4060
ActiveTE Connectivity Potter & Brumfield Relays
RELAY SAFETY 4PST 8A 60V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SR4D4060 |
|---|---|
| Coil Current | 13.3 mA |
| Coil Power | 800 mW |
| Coil Resistance | 4.5 kOhms |
| Coil Voltage | 60 VDC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 45 VDC |
| Must Release Voltage | 6 VDC |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 19.10 | |
| 10 | $ 18.14 | |||
| 30 | $ 17.19 | |||
| 50 | $ 16.81 | |||
Description
General part information
SR4D Series
RELAY SAFETY 4PST 8A 60V
Documents
Technical documentation and resources
No documents available
