WR-40PB-VF-N1

Active

JAE Electronics

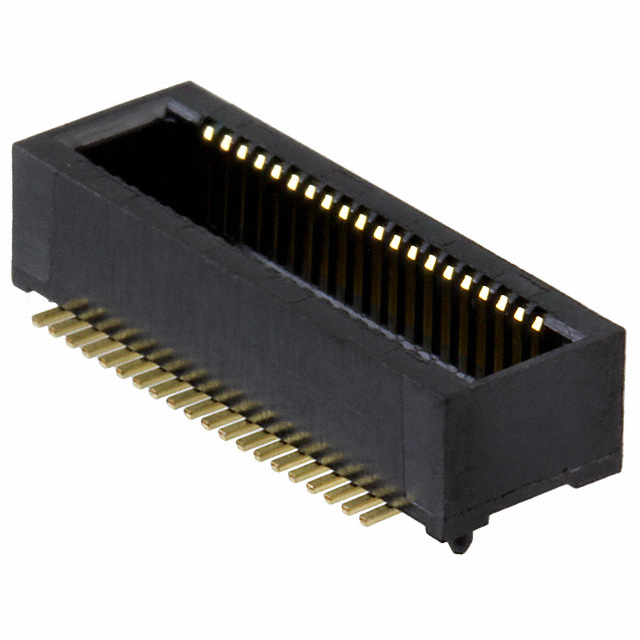

CONN PLUG 40POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Rows	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board
JAE Electronics WR-40PB-VF50-N1-R1300	Gold	5 mm 5.5 mm 8 mm	4 mm	0.157 "	2	Board Guide	Outer Shroud Contacts Plug	4 Áin	0.1 Ám	Surface Mount	40	0.5 mm	0.02 in
JAE Electronics WR-40PB-VF60-N1	Gold	6 mm 6.5 mm 9 mm	5 mm	0.197 in	2	Board Guide	Outer Shroud Contacts Plug	4 Áin	0.1 Ám	Surface Mount	40	0.5 mm	0.02 in
JAE Electronics WR-40PB-VF-N1	Gold	4 mm 4.5 mm 7 mm			2	Board Guide	Outer Shroud Contacts Plug	4 Áin	0.1 Ám	Surface Mount	40	0.5 mm	0.02 in	0.118 in	3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Strip	268	$ 3.00

General part information

40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold

Technical documentation and resources
