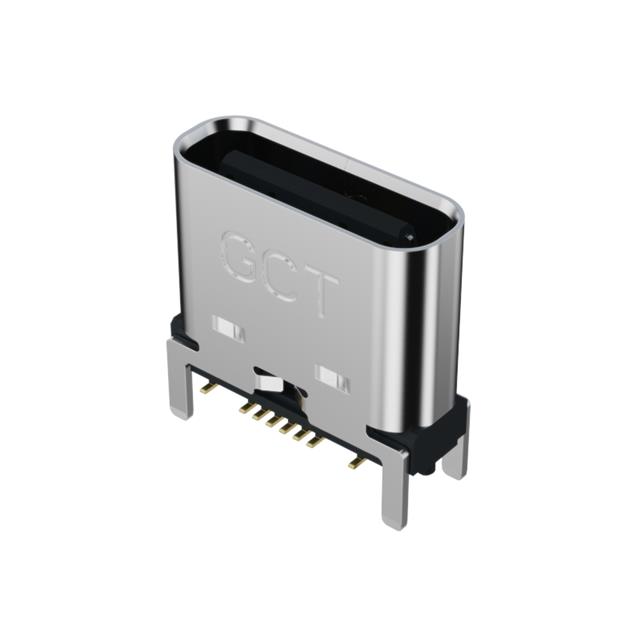

USB4145-03-0170-C
ActiveGCT
USB 2.0 TYPE-C RECPT VERT SMT 1.
Deep-Dive with AI
Search across all available documentation for this part.
USB4145-03-0170-C
ActiveGCT
USB 2.0 TYPE-C RECPT VERT SMT 1.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | USB4145-03-0170-C |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20000 |
| Mounting Feature | Vertical |
| Mounting Type | Surface Mount, Through Hole |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated [custom] | 48 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.33 | |
| 10 | $ 1.02 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| Digi-Reel® | 1 | $ 1.33 | ||
| 10 | $ 1.02 | |||
| 25 | $ 0.91 | |||
| 50 | $ 0.84 | |||
| 100 | $ 0.78 | |||
| 250 | $ 0.71 | |||
| Tape & Reel (TR) | 600 | $ 0.64 | ||
| 1200 | $ 0.60 | |||
| 1800 | $ 0.57 | |||
| 3000 | $ 0.54 | |||
| 4200 | $ 0.53 | |||
| 6000 | $ 0.51 | |||
| 15000 | $ 0.47 | |||
Description
General part information
USB4145 Series
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Through Hole
